LG G4 Headphone Port Replacement

Geschrieben von: Austin Stratton
  • Kommentare: 8
LG G4 Headphone Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

This guide shows you how to replace the headphone port.

  1. n1NmVCcXE6LNQ3kS

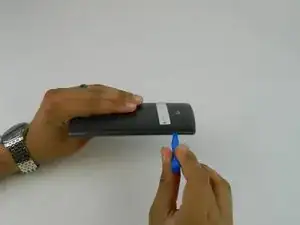

    • Make sure the phone is powered off.

    • Remove the rear cover by placing the plastic opening tool in the groove on the bottom left side of the LG G4 and gently prying up.

  2. btrnvZGJADnyGYq3
    btrnvZGJADnyGYq3
    uW2Uw1E34T6LXFRx

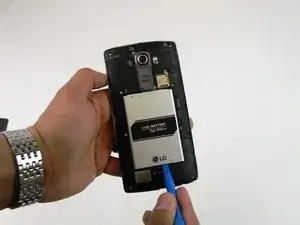

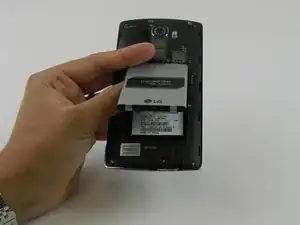

    • Place the plastic opening tool at the bottom edge of the battery and lift up. Carefully remove battery with your hands.

  3. qtPWr6ePukG1uIBZ
    qtPWr6ePukG1uIBZ
    LyYIdnOabZtFHxSy
    OjGJx4sMEZOhoQaV

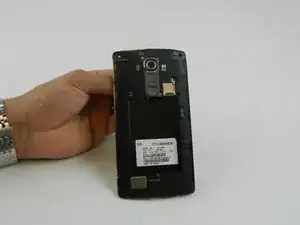

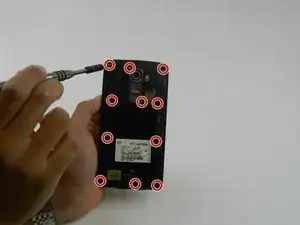

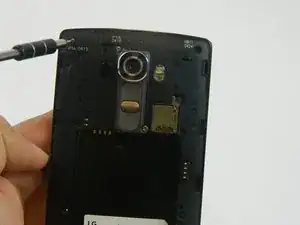

    • Remove the eleven 3.9 mm Phillips #00 screws found at the back of the phone.

  4. xPVCEDj4oevTMnKa
    xPVCEDj4oevTMnKa
    VI2l1qPcvbmhuEuU
    6qQevlMWJaQJKf3U

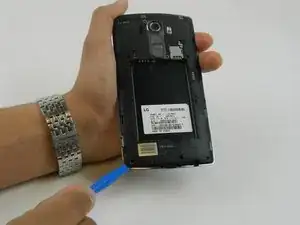

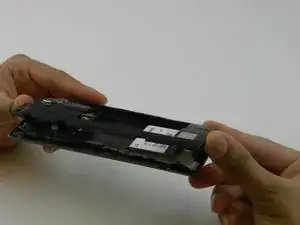

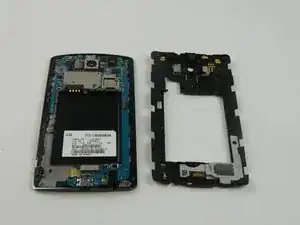

    • Once all the screws have been removed, place the plastic opening tool in the lower left corner and firmly lift the cover up.

    • Detach the cover with your fingers

  5. I5ccD1AZqcxiwilY
    I5ccD1AZqcxiwilY
    oYEDZNk2fWVDgEZZ

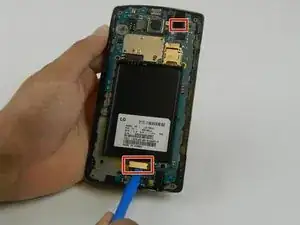

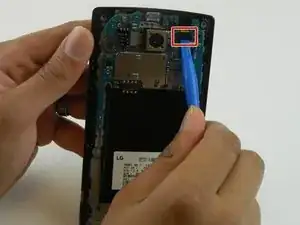

    • Gently wedge the plastic opening tool under the ribbons where each of the three cables are connected, and gently lift up to detach the cable.

    • This will allow you to remove the motherboard and give access the headphone port.

  6. tXtwHfjd4XiSpxFu
    tXtwHfjd4XiSpxFu
    pUONUQDW3yACKD6w

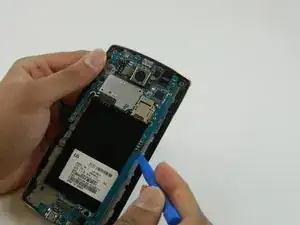

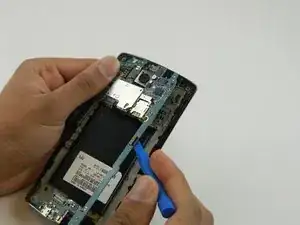

    • Remove the motherboard by lifting it up using the plastic opening tool and your fingers .

  7. uJDQDdKYVpSiFlgB
    uJDQDdKYVpSiFlgB
    13EPNLko4awx5soN

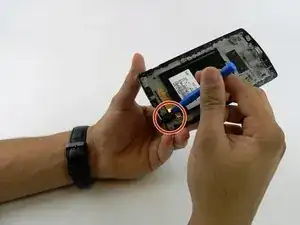

    • Place the plastic opening tool under the upper left corner of the headphone port, and lift up.

    • The headphone port is held in place with adhesive so it may take some time to pry it loose.

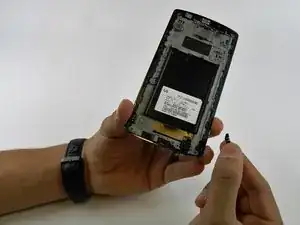

    • Remove the headphone port with your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
