LG G8 ThinQ Screen Replacement

Geschrieben von: Josh Cress

Kommentare: 6

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

If your LG G8 ThinQ’s screen is experiencing symptoms described in our troubleshooting page such as dead pixels or irregular touch response, this guide will help to replace the screen and access some functions and/or displays that may be obsolete with a damaged screen.

The LG G8 ThinQ requires disassembly of the entire interior of the device to completely replace the screen.

Before disassembling your device, discharge the battery below 25%.

This phone uses a strong adhesive on the battery and back panel; iFixit’s adhesive remover or high concentration (90% or higher) isopropyl alcohol can be used to make the process easier.

Adhesive can be replaced to closer replicate factory fit and finish.

Werkzeuge

Schritt 1

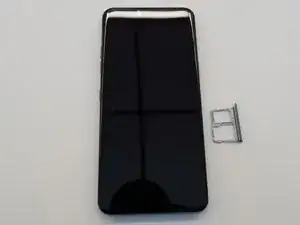

Unplug and power off your phone before you begin.

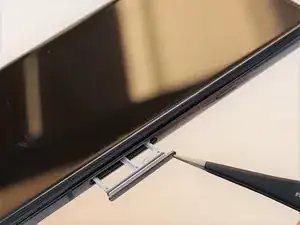

Insert the SIM card eject tool into the pinhole in the lower right side of the phone.
Remove the SIM card and tray.

Schritt 2

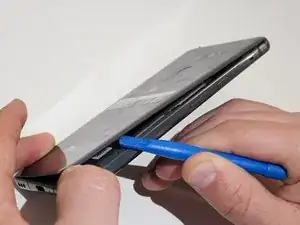

Place the phone so that the screen is facing down.
Insert opening cards between the back panel and frame of the phone to loosen the clips and adhesive.
Using equal pressure, carefully pry the back panel away from the phone.
Once enough space has been created, use an opening tool to completely separate the back panel from the phone.

This is where I started to ponder for the first time because my camera looks different.

I also have a LG G8 ThinQ but maybe the european version

Thomas Wiele -

Schritt 3

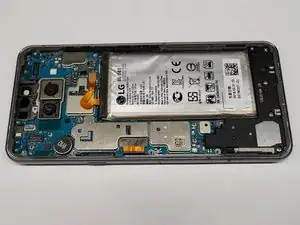

Remove all 14 screws from the midframe using a Phillips #000 screwdriver.

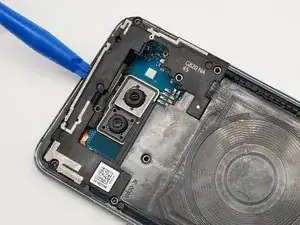

Work an opening tool around the perimeter of the midframe to pry and remove it from the phone.

and here it is true, the screws are in a different place. The sound system on the bottom is also different

Thomas Wiele -

Schritt 4

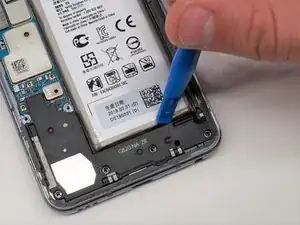

Using an opening tool, carefully pry out remove the speaker system from the phone.

Schritt 5

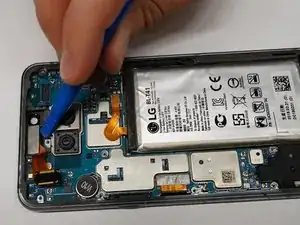

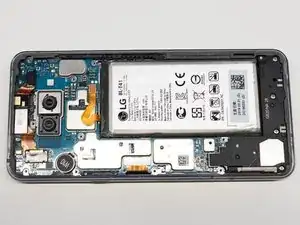

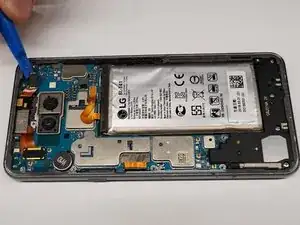

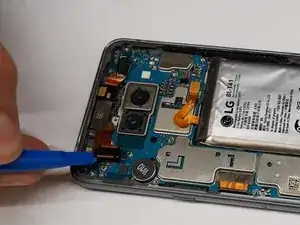

Using an opening tool, carefully disconnect the ribbon cables from both cameras.

Schritt 6

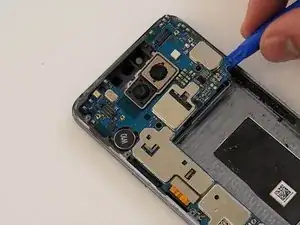

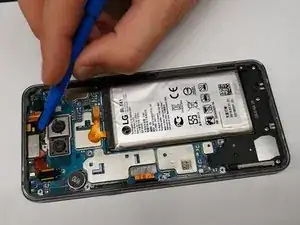

Using an opening tool, carefully pry up and remove both cameras from the phone casing.

Schritt 7

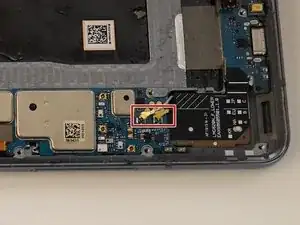

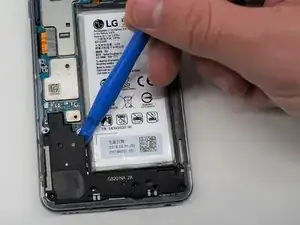

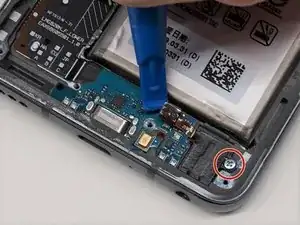

Using an opening tool, carefully disconnect the ribbon cable connecting the 3.5mm audio jack to the motherboard.
Remove the screw holding the 3.5 mm audio jack in place using a Phillips #000 screwdriver.

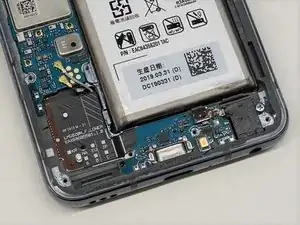

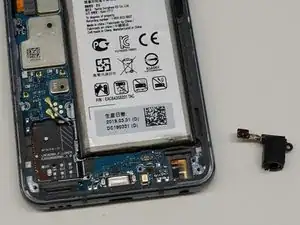

Remove the audio jack from the phone.

Schritt 8

Flip phone so that screen is facing up.

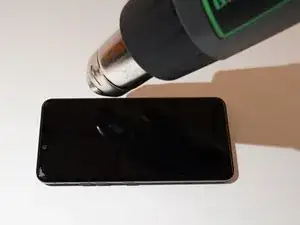

Using a heating pad, hairdryer, or heat gun, apply heat to loosen the adhesive beneath the battery.
Be careful to not overheat the phone; the screen and battery are susceptible to damage.
The adhesive can be difficult to soften; it may take many attempts.

Schritt 9

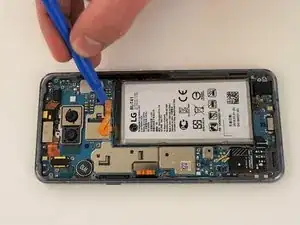

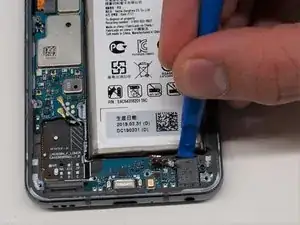

Using an opening tool, carefully pry up the ribbon cable to disconnect the battery.

the battery type of my LG is "BL-T43"

Thomas Wiele -

Schritt 10

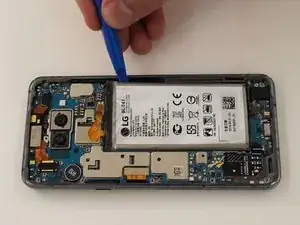

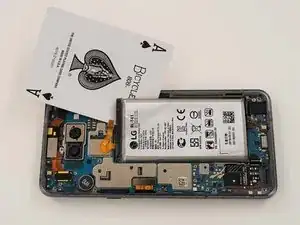

Using opening cards or an opening tool, carefully pry around the edges of the battery.
If you have trouble prying up the battery, the adhesive may not be loose enough. Re-apply heat, or use some isopropyl alcohol under the battery, allowing it to penetrate for several minutes to weaken the adhesive.

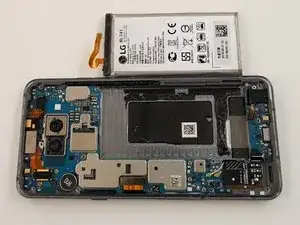

Remove the battery from the phone.

Although it is a different phone, the instructions were helpful.

Unfortunately, my battery exchange was pointless.

I think my USB socket is defective and unfortunately I can't find any instructions for it at the moment.

But if anybody want, i can send a few pics from the repairing

Thomas Wiele -

Schritt 11

Use an opening tool to disconnect the two coaxial cables from the motherboard.

Schritt 12

Using an opening tool, carefully disconnect the screen ribbon cable from the motherboard.

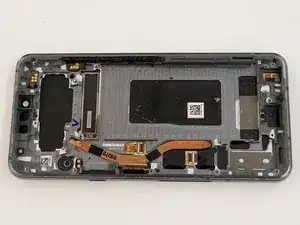

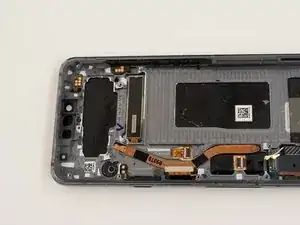

Using an opening tool, carefully pry up the motherboard from the frame and remove it from the phone.

Schritt 13

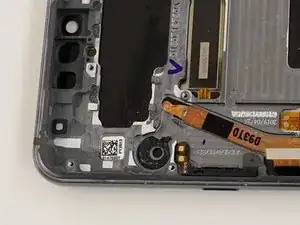

Remove the vibration motor from the phone casing using an opening tool.
Heat the vibration motor from the other side of the phone to loosen adhesive if needed.

Schritt 14

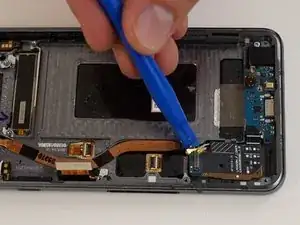

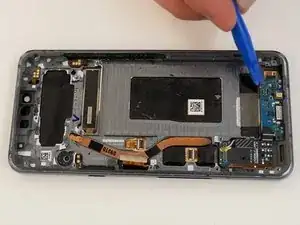

Using a plastic spudger, carefully pry up and remove the charging daughter board from the case.
Reinstall removed components onto new phone casing and screen.

Abschluss

To reassemble your device, follow these instructions in reverse order, installing the components on your new screen.
