Einleitung

If your phone's camera breaks or you would like to update it, this guide will show you how to install your phone's camera.

  1. kcZYHCYcnWSAQl4P
    • Hold the phone camera-side up and locate the rear cover.

  2. bGbNUdO5G1w1mchL
    • Place a thumb below the camera, apply a little pressure, and slide the cover toward the bottom of the phone.

  3. FMyrOWLurEnhGBGn
    • Place the plastic opening tool in the small slot below and to the left of the battery.

    • Pry the battery upward to remove it.

  4. sH2hUxgXBMQjctZN
    • Using the #00 Philips screw driver, unscrew the four 4.5mm screws located around the battery compartment.

  5. 5kHkF1jjyTxL6LOU
    • Wedge the plastic opening tool between the screen and the body of the device, using care to avoid damaging internal components.

    • Gently move the tool around the perimeter of the screen to separate it from the body.

    • You should not completely separate the screen from the device in this step.

  6. piEAkKJACgSOupRv
    • Flip the device over so the battery compartment faces up.

    • Press the scroll wheel, located in the upper-left corner, into the device to avoid damage.

    • Gently insert the plastic opening tool into the seam between the frame and front cover to separate the back panel from the device.

    • The volume, lock, and camera buttons are loose, so be careful not to misplace them.

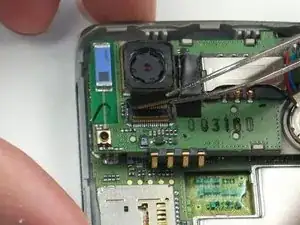

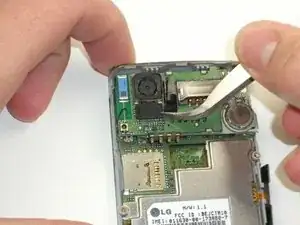

  7. Uy6rQF2RMyOkd1I3
    Uy6rQF2RMyOkd1I3
    CoEdMW2eC4QmiDg2
    • Locate the camera near the upper-left corner and use the metal tweezers to carefully detach the black tab.

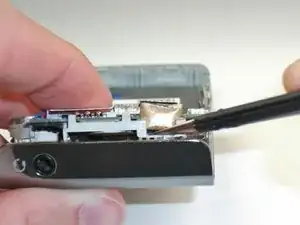

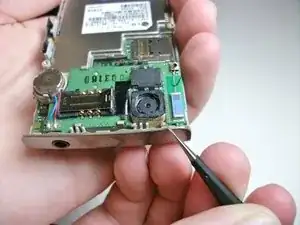

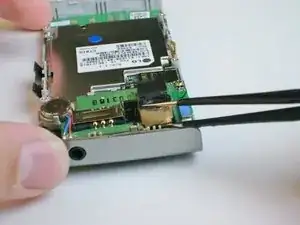

  8. ut4JWSysHATFobau
    ut4JWSysHATFobau
    fCDgc6WQfgctNF3U
    oMQnMtgPBlMmkivE
    • Carefully slide the metal tweezers underneath the camera in order to lift it out.

    • Do not puncture the gold lining surrounding the camera.

    • The camera is glued in place, so there may be a slight resistance.

Abschluss

To reassemble your device, follow these instructions in reverse order.
