Einleitung

If your phone's touch screen breaks or malfunctions, this guide will show you how to easily remove and replace it.

  1. kcZYHCYcnWSAQl4P
    • Hold the phone camera-side up and locate the rear cover.

  2. bGbNUdO5G1w1mchL
    • Place a thumb below the camera, apply a little pressure, and slide the cover toward the bottom of the phone.

  3. FMyrOWLurEnhGBGn
    • Place the plastic opening tool in the small slot below and to the left of the battery.

    • Pry the battery upward to remove it.

  4. sH2hUxgXBMQjctZN
    • Using the #00 Philips screw driver, unscrew the four 4.5mm screws located around the battery compartment.

  5. 5kHkF1jjyTxL6LOU
    • Wedge the plastic opening tool between the screen and the body of the device, using care to avoid damaging internal components.

    • Gently move the tool around the perimeter of the screen to separate it from the body.

    • You should not completely separate the screen from the device in this step.

  6. piEAkKJACgSOupRv
    • Flip the device over so the battery compartment faces up.

    • Press the scroll wheel, located in the upper-left corner, into the device to avoid damage.

    • Gently insert the plastic opening tool into the seam between the frame and front cover to separate the back panel from the device.

    • The volume, lock, and camera buttons are loose, so be careful not to misplace them.

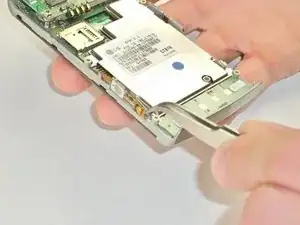

  7. JSWccSUCTR56IavK
    JSWccSUCTR56IavK

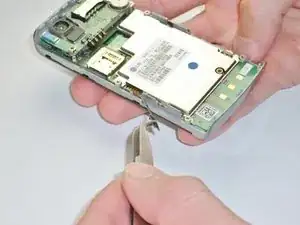

    VJf3Yb5JjkNGlEZ4
    FKqYDGfqhyO5J4XR
    • Use the metal tweezers to gently peel the yellow tab from the left edge of the phone at the two plastic bases.

    • Do not completely remove the tab from the body, it should still be connected to the phone by the orange plastic.

    • Repeat this for the white tab on the opposite side of the phone.

    • This tab also has two plastic bases adhering it to the edge of the phone.

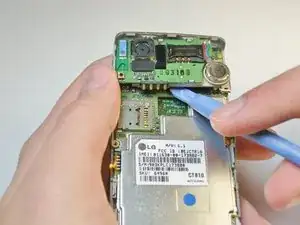

  8. VEbhPetOuEsJg1ff
    • Insert your plastic opening tool underneath the speaker/camera panel, and gently pry it upwards.

    • Do not fully remove the panel! It should still be attached to the motherboard by a red and black wire.

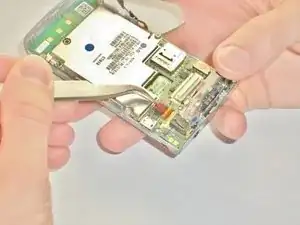

  9. uFMKEFLcJpsNITAt
    uFMKEFLcJpsNITAt

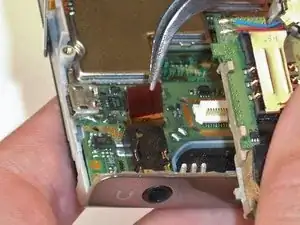

    moiSfoHGsKfGKx1d
    • Use the metal tweezers to gently lift the edge of the maroon tab, it should pop up easily.

    • Do not remove the tab completely, it should still be connected to the phone.

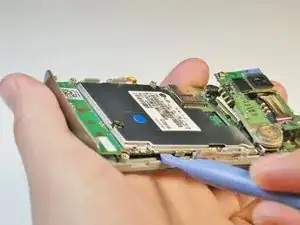

  10. qGH5GlsX4TVfdYHt
    • Insert the plastic opening tool underneath the motherboard towards the bottom edge of the phone and gently pry it from its case.

    • Lift the motherboard and slide it towards you by hand to free it from the phone.

    • The call and end buttons may fall out when the motherboard is removed! Don't lose the buttons.

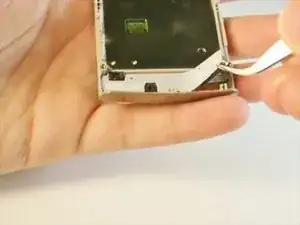

  11. Wcf6KoWKPO5TtHXl
    • Remove the call and end buttons using the metal tweezers.

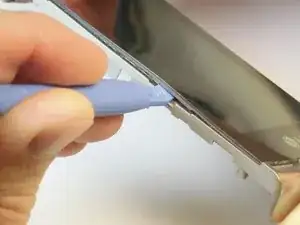

  12. FGwOsrQUDTtLBgYP
    • Wedge the plastic opening tool between the screen and sides of the phone.

    • Slide the tool along the edge to loosen the screen.

    • Repeat for the opposite side.

    • Don't completely remove the screen yet to avoid damaging the screen.

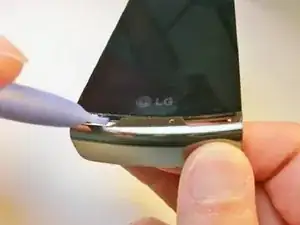

  13. sH4vxAGtNZq1YDvf
    • Wedge the plastic opening tool under the screen where the buttons were to loosen it.

  14. SLPNMtmAjdNGG1dq
    SLPNMtmAjdNGG1dq
    ZyLh1ojEiW2pFswQ

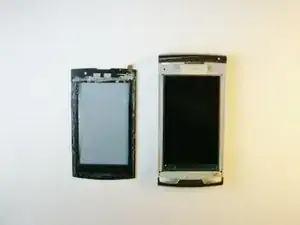

    • Gently peel the touch screen off from the bottom of the phone.

    • Do not damage the yellow tab in the upper right corner of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
