LG K10 Loudspeaker Replacement

Geschrieben von: Witrigs
  • Kommentare: 0
LG K10 Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This repair guide will teach you how to replace the loudspeaker component for an LG K10.

  1. RAgNVkygC3PZ6anj

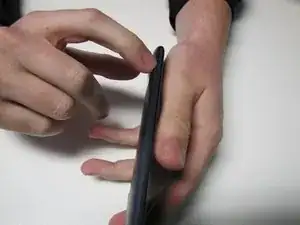

    • Power off the device.

    • Remove the back case.

  2. H5VWVHYExO4pbQMt

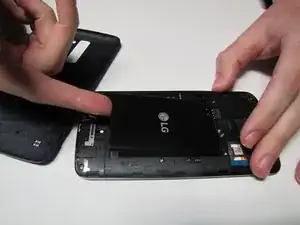

    • Remove the battery

  3. 2C5YSntB1xigPQsK
    2C5YSntB1xigPQsK
    w5LF2TCykkBonJea

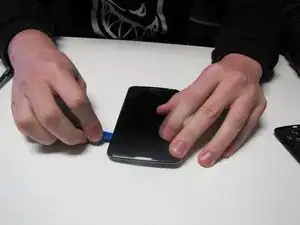

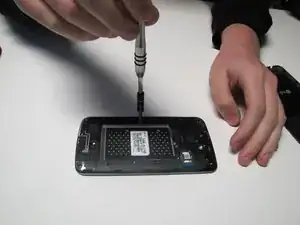

    • Unscrew all of the mid-frame screws, and use opening picks or a plastic opener to carefully remove the frame.

  4. BkWoNfUPMrguVuAW

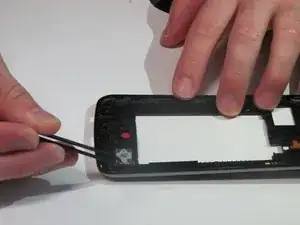

    • With tweezers remove the loudspeaker from the mid-frame.

    • The loudspeaker is attached to the mid-frame with a thin layer of adhesive and should break free without much force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
