Einleitung
-
-
Remove the back cover by inserting a fingernail or opening pick here and disengaging the plastic clips.
-

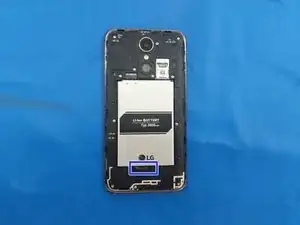

Lift battery up here
-
-
-

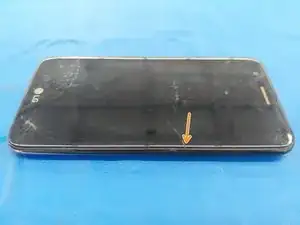

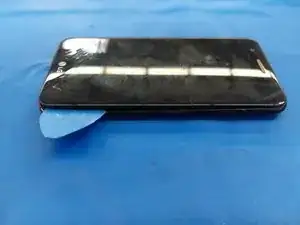

Use fingernails or insert an opening pick into the gap between the digitizer and the midframe and pull the midframe outwards to disengage the plastic clips.
-
Carefully disengage the clips on the bottom as the headphone jack goes through the midframe.
-
Once all the clips have been disengaged, move the midframe outwards and downwards to disengage it from the headphone jack.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
