LG K7 Charging Port Replacement

Geschrieben von: Stephen Damm
  • Kommentare: 0
LG K7 Charging Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

The charging port allows for the LG K7 to be charged. It can stop working for a number of reasons but the main two are shock and wear. It can be replaced in about 30 minutes with the guide below. A soldering iron will be necessary which should be used with caution.

  1. ppWwuYRCYxunWHhe
    ppWwuYRCYxunWHhe
    sKjHLieZNyM1cOVa

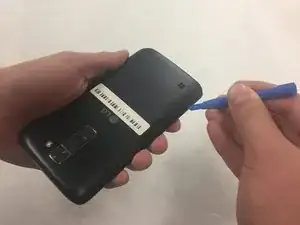

    • Remove the back cover by using the plastic opening tool.

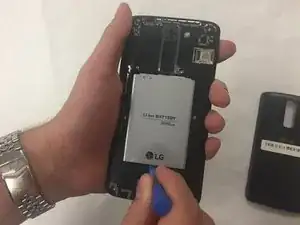

    • Remove battery by using the plastic opening tool.

  2. B21eGujGj6rGlPEx

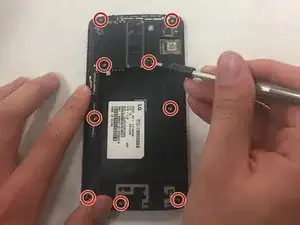

    • Remove the nine 4mm Phillips #000 screws.

    • The cover should lift off easily once the screws are out.

    • Be gentle with the frame when removing it. The plastic is very thin and can easily break.

  3. QOTlJ1Edy61gpRjS

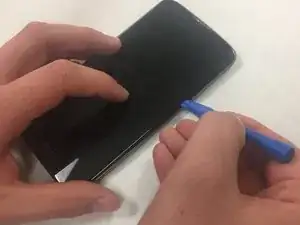

    • Place the plastic opening tool between the screen and the plastic edge of the phone and pry carefully until screen pops off.

    • The frame is held to the rest of the phone with plastic tabs. Release each tab one at a time around the phone for the easiest removal.

    • Do not bend the outer frame or screen when separating them. This will severely damage the phone.

  4. nJH3EgqcmuXLTdTF

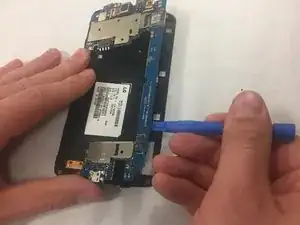

    • Place the plastic opening tool between the blue motherboard and black plate and pry until the motherboard pops off.

  5. m2MAdOgkXO5n1Uck
    m2MAdOgkXO5n1Uck
    Vhr1fZsw2ew2jEEK

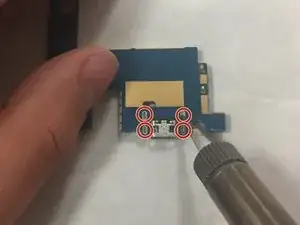

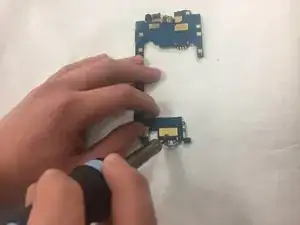

    • Heat up the four connection points using a soldering iron.

    • Once hot, gently push the port off.

    • Soldering iron is hot! Use with caution.

    • Be careful not to touch other components with the soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
