LG K7 Volume & On/Off Buttons Replacement

Geschrieben von: Jack Lepkowski
  • Kommentare: 0
LG K7 Volume & On/Off Buttons Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

The power and volume buttons allow the user to turn on/off their LG K7 as well as to control the volume of their phone . It can stop working for a number of reasons but the main reason is wear. It can be replaced in about 25 minutes with the guide below.

  1. HRNsqdJ2nTfBE3vF
    HRNsqdJ2nTfBE3vF
    5Zk2yXJIR4vnalCy

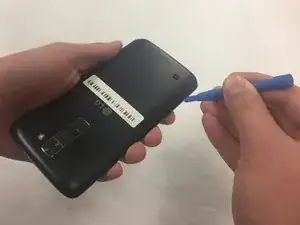

    • Remove the back cover using a plastic opening tool.

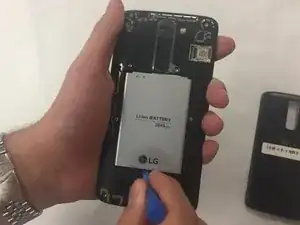

    • Remove the battery using a plastic opening tool.

  2. 51dKoiOJBEIkbLJ1

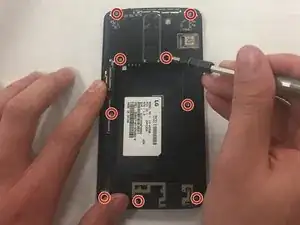

    • Remove the nine 4mm Phillips #000 screws.

    • The cover should lift off easily once the screws are out.

    • Be gentle with the frame when removing it. The plastic is very thin and can easily break.

  3. j4FdOcXapBYtuGvf

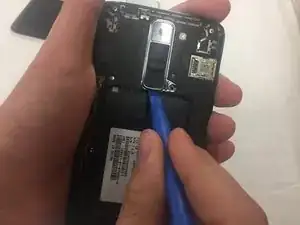

    • Pry off the silver button housing using the plastic opening tool.

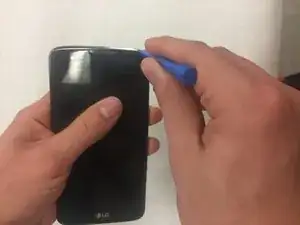

  4. dpXGNDKXmMB3jfQ2

    • Separate the screen from the rest of the phone using the plastic opening tool.

    • The frame is held to the rest of the phone with plastic tabs. Release each tab one at a time around the phone for the easiest removal.

    • Do not bend the outer frame or screen when separating them. This will severely damage the phone.

  5. 1waMw2co3BLUPJOB
    1waMw2co3BLUPJOB
    oTYymkSvghCCWauW
    WPpMMlPknrhfFDXA

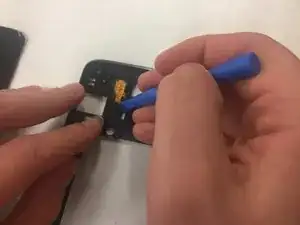

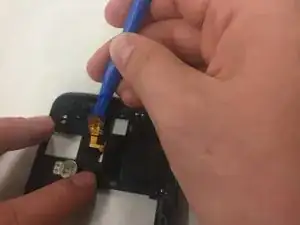

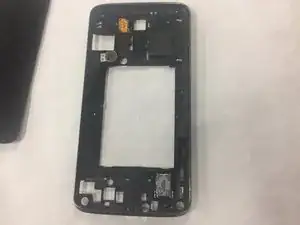

    • Peel off the orange cable using a plastic opening tool.

  6. lXENLqAPOGoaoHXN

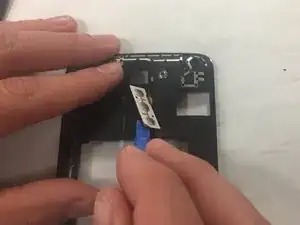

    • Remove the volume/power button cable from the rest of the phone using the plastic opening tool to break the adhesive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
