Einleitung

This guide will walk you through the process of replacing a earpiece speaker.

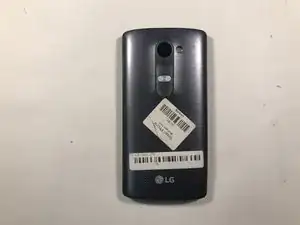

  1. 5wEOQK5OTADNQub5
    5wEOQK5OTADNQub5
    CmKT1AlhmvsaR2Pl
    • Flip phone to the back so you can access back of the phone which holds the battery.

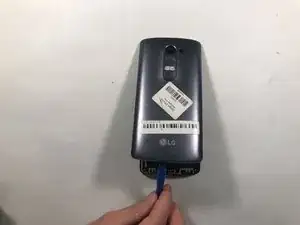

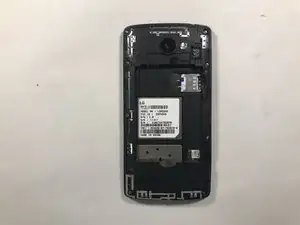

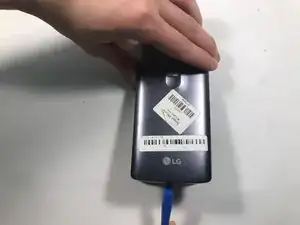

  2. YMkfTaUw33EnyhwA
    YMkfTaUw33EnyhwA
    RexPH1jkRwtSQXPj
    LlDWPUamdQxR222e
    • Pry the back of the phone open in the incision area at the bottom of the phone with your opening tool in an upward direction to retrieve access to the battery.

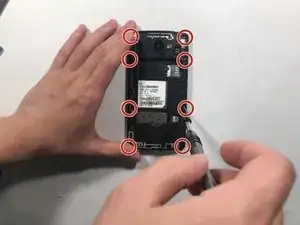

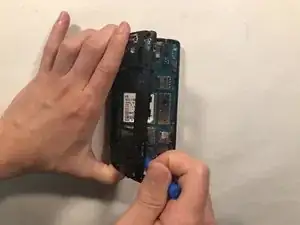

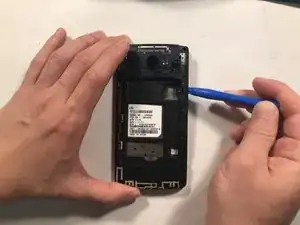

  3. 4NyDDmtte4xABPwT
    4NyDDmtte4xABPwT
    SIWqwgpihBcJksZg
    tef5uCWwAXtV6aZy
    • Once the back is removed you will have access to the 8 screws that need to be unscrewed with the Phillips #0 screwdriver. Once all screws are free use the opening tool to pry the back frame of the phone apart.

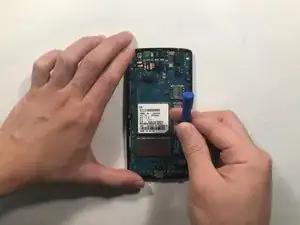

  4. MRfYtdiDKLNQyfAo
    MRfYtdiDKLNQyfAo
    g3wjTXXSqw1F12Fb
    • At this point you should have access to the motherboard.

  5. KqXJmUnUmUmJorVj
    KqXJmUnUmUmJorVj
    TdXNWGfnEm24yDV1

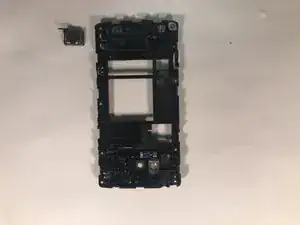

    • Use opening tool to get the earpiece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
