LG Lucid 4G LCD Replacement

Geschrieben von: Adam Boeck
  • Kommentare: 0
LG Lucid 4G LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 - 40 Minuten

Einleitung

This is a straightforward guide on accessing and removing the LCD for the LG Lucid 4G. Take special care when dealing with the ribbon cables, they can tear easily.

  1. y33gYpVoCXygQH5c
    y33gYpVoCXygQH5c
    3QJDCdmaautnQBCJ
    yAoQGvQWRngWdqak

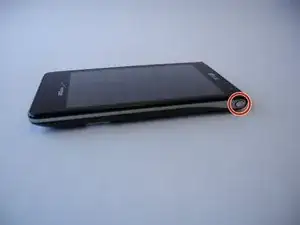

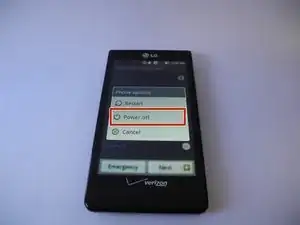

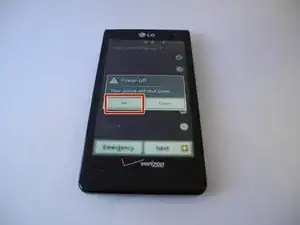

    • Turn off the phone by pressing the power button, then press "Power Off", then press "OK" when notified that your phone will shut down.

  2. fbfvobySw6SQJuUT
    fbfvobySw6SQJuUT
    HgFTLYKdL3vjmThf

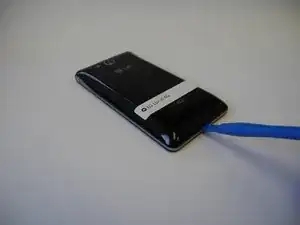

    • Flip the phone so that its back plate is facing upward.

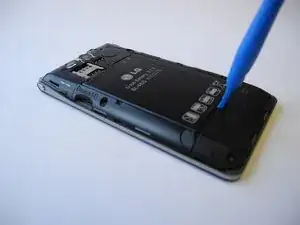

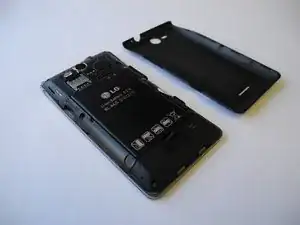

    • Use your fingernail or prying tool to lift the back plate of the phone open by using the notch at the bottom.

  3. 6jvaIAqJDUCyumcN
    6jvaIAqJDUCyumcN
    AMcKhyZaLkObUux3

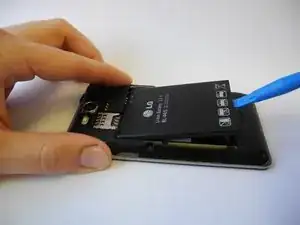

    • Using the notch located near the bottom center, remove the battery with a prying tool or your fingernail.

  4. 3Ld5AFeJdJKkyLXw
    3Ld5AFeJdJKkyLXw
    QFv64XbEVBBvCoG1

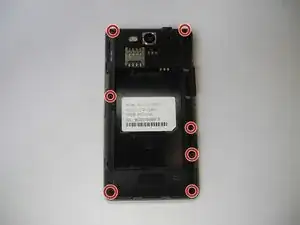

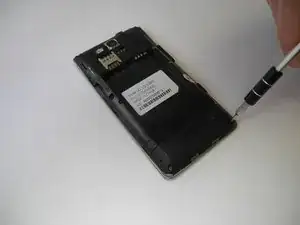

    • Begin by removing the seven Phillip's head screws on the back of the phone.

  5. HKcTmJLfopD3bp4A
    HKcTmJLfopD3bp4A
    yCqPQwVAILXX5wSa

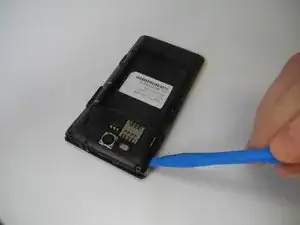

    • Use the small notches along the sides of the phone to help you pry the back plate off and help stop the pry tool from slipping.

    • Use the plastic pry tool and begin working your way around the sides of the phone.

    • Some force may be required during this step.

  6. dWxW4rtPMH2ZSyCF

    • Remove the single Phillip's head screw holding the sim card assembly in place.

  7. jTlExpyYTJ22CMsm
    jTlExpyYTJ22CMsm
    HaQoXDGgPDZaFtQ2

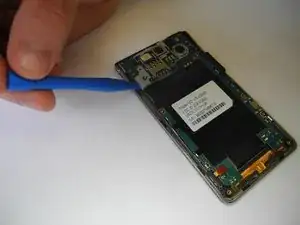

    • Gently lift the corner of the sim card assembly as shown.

    • The SIM card assembly is still attached to the motherboard via a ribbon cable.

    • Release the press-fit ribbon cable connector by lifting it with a spudger or prying tool.

  8. IybYBAdhFHMBmFxu
    IybYBAdhFHMBmFxu
    lQGPCDFyF5PvZ4UH

    • Release the five flex connectors on the motherboard.

    • The camera may fall off during this step. That is okay! Set it aside for reassembly.

    • Once all five flex connectors are released, simply lift the motherboard to separate it from the rest of the phone.

  9. fqiMypEIcuNmDhVZ

    • If the camera did not fall off during step five, you must remove it now by gently lifting it. It is attached by a small amount of adhesive and should detach easily.

    • Gently lift the headphone jack assembly to reveal the touch screen digitizer flex cable.

    • Release the touch screen digitizer flex cable connector.

  10. msF3RJgWA3dLel4L
    msF3RJgWA3dLel4L
    iJNCiAWJqoKfNWjR

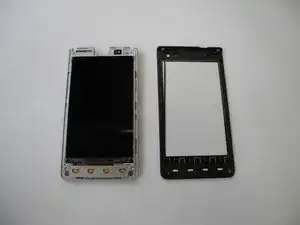

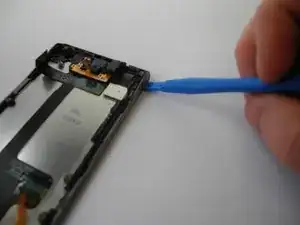

    • Use a plastic pry tool to begin removing the touch screen assembly.

    • Slide the pry tool along the gap between the touch screen digitizer and the LCD mount to release the connectors.

    • Once the touch screen assembly has been separated, carefully slide the ribbon through the slot in its housing.

    • Caution: Be gentle when separating the two sections along the top of the phone. The ribbon detached in step 6 is attached to the touch screen digitizer and must be carefully fed through the LCD housing to avoid tearing it.

  11. k2guWeIDowwf1pbQ
    k2guWeIDowwf1pbQ
    k6IgQbEdsAyFc3Ns

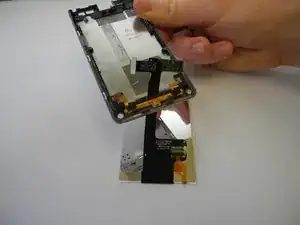

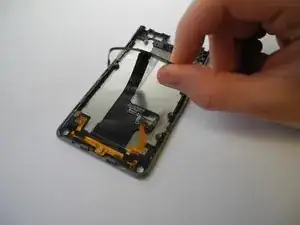

    • The final step is to remove the LCD screen from its housing. Begin by gently peeling the ribbon from the back of the housing.

    • Once the ribbon is fully detached, carefully feed it through the bottom of the display housing.

    • Once this is done the LCD screen assembly will have been separated from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
