LG Motion 4G MS770 Speaker Replacement

Geschrieben von: Daniela Allbright
  • Kommentare: 0
LG Motion 4G MS770 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

7 Minuten

Einleitung

If the speaker is blown or no sound is coming out this will show you how to replace a broken speaker.

  1. lOj6OmOhCyDw3VnE

    • Use a plastic opening tool to remove the back cover.

  2. lLyrPuVyyMosanJt

    • Use a plastic opening tool to remove the battery, lifting from the bottom right corner.

  3. SsBQvGY2TMpHi6nk

    • Use a Phillips #00 Screwdriver to remove all eight 4mm screws.

  4. NCn4rAXXTDWlQnWJ
    NCn4rAXXTDWlQnWJ
    AAmvJEvQqn3VcUEe

    • Use a plastic opening tool to remove the back trim by working around all of the edges.

  5. OGDhhVOMxAPudF46
    OGDhhVOMxAPudF46
    HUl1GRtUiPeUYx5B

    • Remove the volume buttons from the side.

  6. OI4ggXAeULt4BLlI
    OI4ggXAeULt4BLlI
    OgbeN1JFcml13iYV

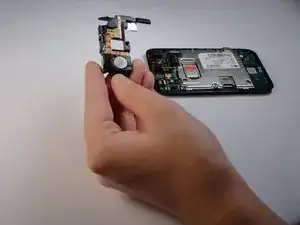

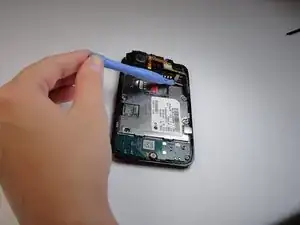

    • Use a plastic opening tool to lift the speaker off by prying under the silver square as shown.

    • Note: There is a small tab underneath the speaker that will be lifted off when the speaker is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
