LG Motion 4G MS770 Volume Buttons Replacement

Geschrieben von: Daniela Allbright
  • Kommentare: 0
LG Motion 4G MS770 Volume Buttons Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

You will need to use this guide if your volume buttons are not working or are worn down.

  1. lOj6OmOhCyDw3VnE

    • Use a plastic opening tool to remove the back cover.

  2. lLyrPuVyyMosanJt

    • Use a plastic opening tool to remove the battery, lifting from the bottom right corner.

  3. SsBQvGY2TMpHi6nk

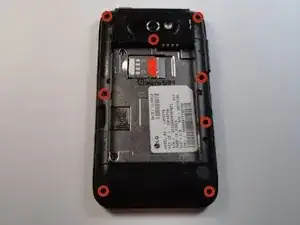

    • Use a Phillips #00 Screwdriver to remove all eight 4mm screws.

  4. NCn4rAXXTDWlQnWJ
    NCn4rAXXTDWlQnWJ
    AAmvJEvQqn3VcUEe

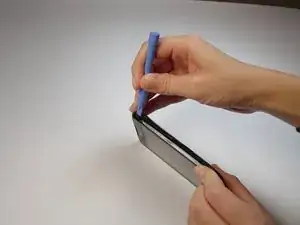

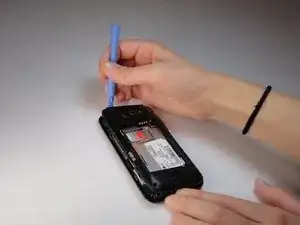

    • Use a plastic opening tool to remove the back trim by working around all of the edges.

  5. OGDhhVOMxAPudF46
    OGDhhVOMxAPudF46
    HUl1GRtUiPeUYx5B

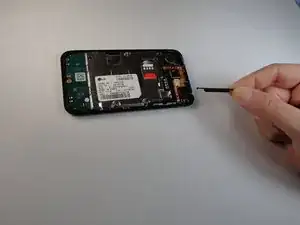

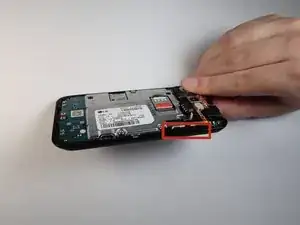

    • Remove the volume buttons from the side.

Abschluss

To reassemble your device, follow these instructions in reverse order.
