LG Optimus F3 Back Camera Replacement

Geschrieben von: Jonathan Fang
  • Kommentare: 0
LG Optimus F3 Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This is a replacement guide on how to replace your back camera unit on your LG Optimus F3.

  1. HAOcNVtB42JcJJjn

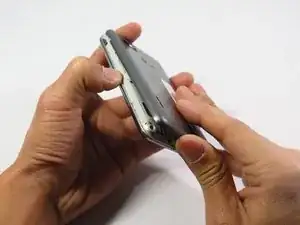

    • Remove the battery cover. Unsnapping each corner will allow the cover to come off.

  2. ZlAMNaFZ6CvVGhxn

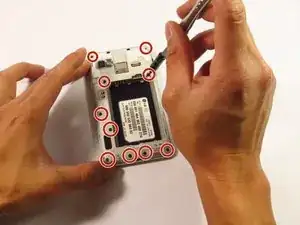

    • Unscrew the ten 1.0 mm screws on the back.

  3. cGAVM5mO3vO5G1ah

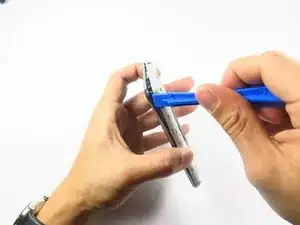

    • Separate the rear plastic case by inserting the opening tool between the seams on all sides.

  4. 4FNBiPaRDSiXNHWQ

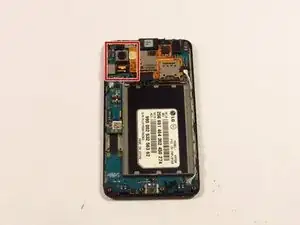

    • Located at the top left corner is the camera unit.

  5. qCHIOT56dOp2LZBg

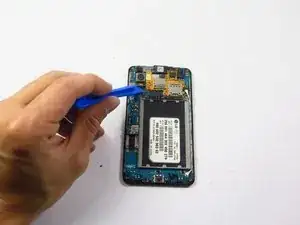

    • Use a plastic opening tool to detach the connector between the back camera and the motherboard.

  6. yDe2WYvN2aDJuhqk

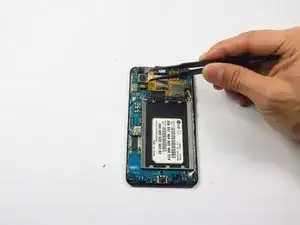

    • Use the tweezers to remove the camera by pinching the sides and carefully pulling up.

  7. 5uEaZXf4hc2iPvXT

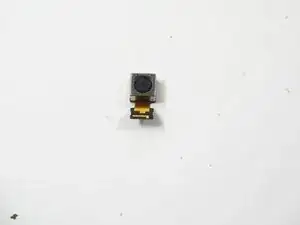

    • There you go !

Abschluss

To reassemble your device, follow these instructions in reverse order.
