LG Optimus F3 Speaker Replacement

Geschrieben von: Hubert
  • Kommentare: 0
LG Optimus F3 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. Nlql3ikJUOmrFpBF
    Nlql3ikJUOmrFpBF
    mSvZoHE1EFDIsXfp

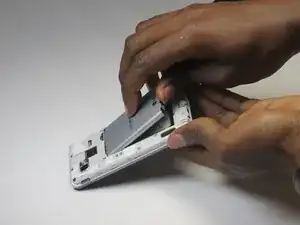

    • Remove battery cover.

    • Remove battery

  2. xUIR2A1VS6TV5Twp

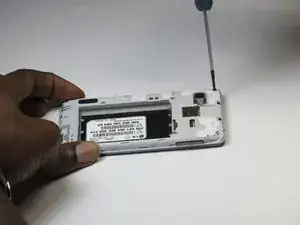

    • Remove the ten (10) holding screws located on the phone using phillips screwdriver.

  3. dFcjOJNEARoUVuyt
    dFcjOJNEARoUVuyt
    AIITwvhdRDEW1IOP
    OIxMJCcA3agCe2mF

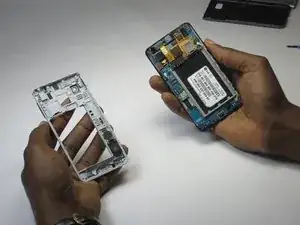

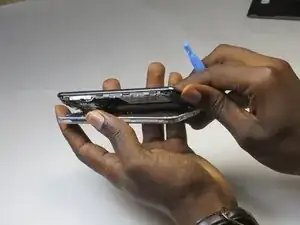

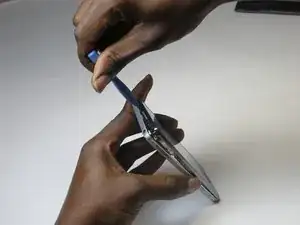

    • Use spudger tool to separate the main board from back face.

  4. GBObDFSuQwfuipkl
    GBObDFSuQwfuipkl
    SgQJvREnxplITBbu
    XBBgPH4UtGkoa2bo

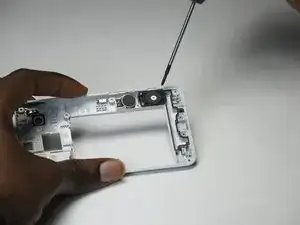

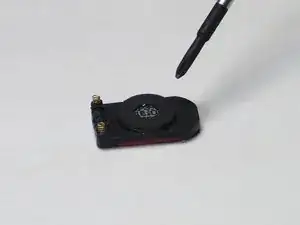

    • Locate faulty speaker.

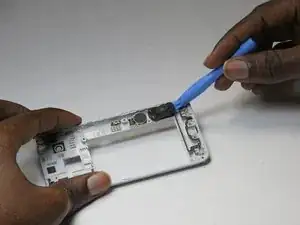

    • Use spudger to separate speaker from terminal (it will take a reasonable amount of force to do this, due to the adhesive holding the speaker in place).

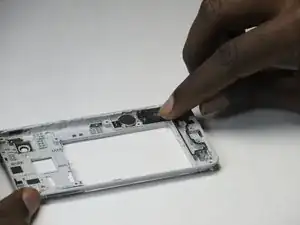

  5. B6ZRgXCNO1NWmsVD

    • Align new speaker to the area.

    • Ensure speaker is securely in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
