LG Optimus F3 digitizer screen glass replacement

Geschrieben von: Rita Snodgrass
  • Kommentare: 4
LG Optimus F3 digitizer screen glass replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten

Einleitung

Replace digitizer glass in LG Optimus F3 LS720. Also demonstrates almost complete teardown.

  1. XusCbIlLE6AZSoiu
    XusCbIlLE6AZSoiu
    FtYjXWMEPGlQkwNV
    4eqv2vNdixVElxG3

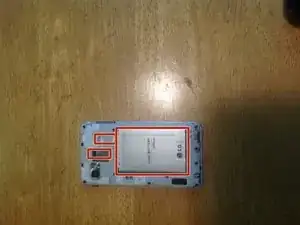

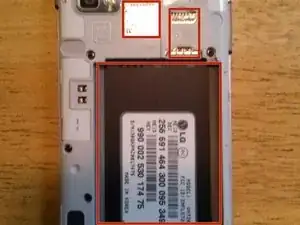

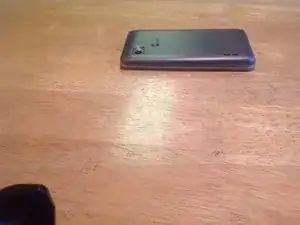

    • Remove Back Cover

    • Remove SDCard (if you have one)

    • Remove SIM Card

    • Remove Battery

  2. ayfWDQt33wjvYXbE
    ayfWDQt33wjvYXbE
    dkWwtd5mXQewgB4g

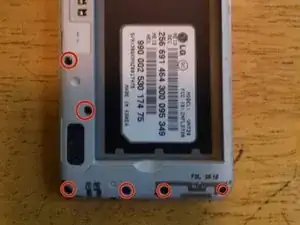

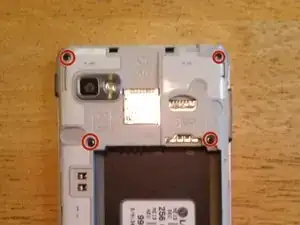

    • Remove 10 Philips Head screws

  3. AH3F1UQGgCNZv3EP
    AH3F1UQGgCNZv3EP
    CbPFvIPo1ATXHN1E

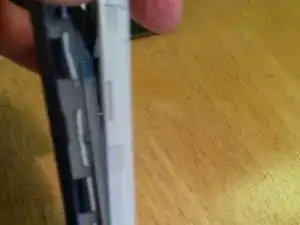

    • Using a pry took, pry the back plate off of the phone. Work your way around, prying the tabs as you come to them.

  4. 3PuWuQHsCOoaVQxc
    3PuWuQHsCOoaVQxc
    wfpcLpFp3FXkY2LU

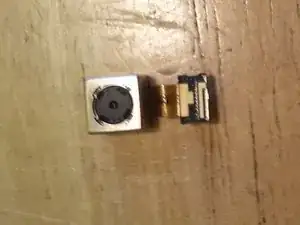

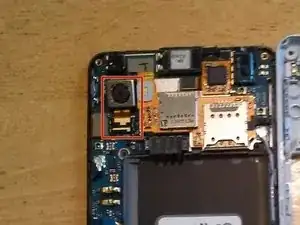

    • Use pry tool to disconnect camera cable and then remove the camera

  5. UNuRSdnnxKcGiL1T
    UNuRSdnnxKcGiL1T
    4YlF1jyLkUZtIerx

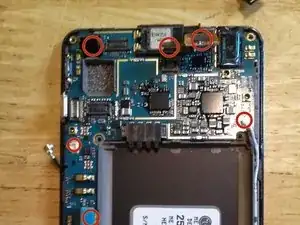

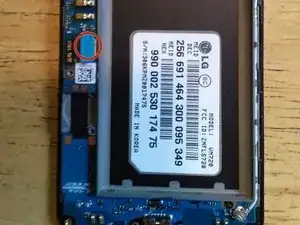

    • Use pry tool to disconnect 4 ribbon cables and two antenna wires.

    5 ribbon cables, 1 is shown released next to camera.

    Tim -

  6. 1V3521b5HF6fyIXy
    1V3521b5HF6fyIXy
    gRRP2YrUPMEUBvYD

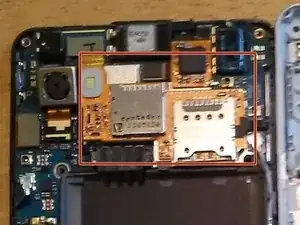

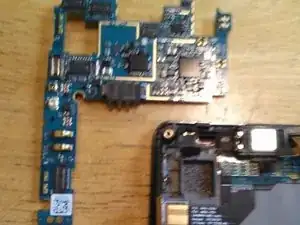

    • Use pry tool to gently remove the logic board.

  7. IseVJZJtFSUvZLGl
    IseVJZJtFSUvZLGl
    fCN2EPG5lBP52FJB

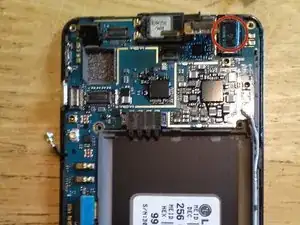

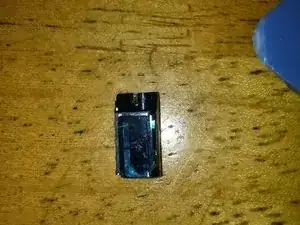

    • Use pry tool to remove headphone jack.

  8. XIvvUOId3FJvI1R4

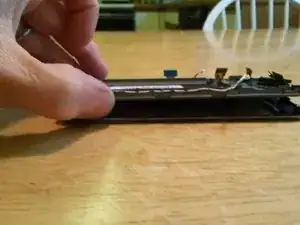

    • Use the pry tool to pry the front frame off of the main body of the phone.

  9. LZKhPIyxdOhxCEOy

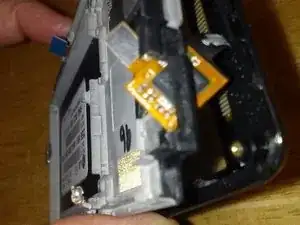

    • Carefully pull the digitizer cable through the slot. There will be a small piece of rubber blocking the opening. You may remove it, or just pull through it.

    • Note: If the slot is not wide enough, make sure that you removed the headphone jack, as described in step 7.

  10. nGXyY43VEDInbBGs

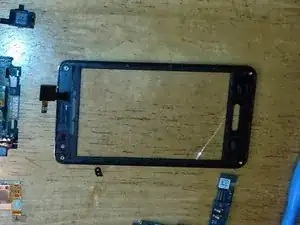

    • Use a heat gun or blow dryer to heat up the adhesive holding the glass in the frame. Carefully remove the glass using a pry tool.

    • Clean existing adhesive off of frame, or reuse it if you managed to keep it intact.

    • Apply new adhesive if not reusing existing adhesive.

    • Insert new glass.

    • Ensure that speaker cover at top of phone is in place.

    • Reverse steps to reassemble phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
