This guide will take you through the process of replacing the front camera in an LG Optimus F60. This task should take about 7minutes to complete.
-
-

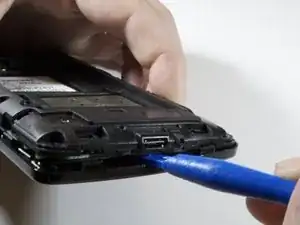

Hold the phone in your hand and position the small plastic opening tool or your finger under the lip of the phone by the USB port.
-
Pry or lift up on the indent with the opening tool.
-
Remove the back panel.
-
-
-
Place the small plastic opening tool or your finger at the indentation at the base of the battery.
-
Pry upwards or lift with your finger and remove battery.
-
-
-

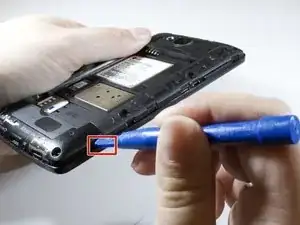

Insert the plastic opening tool in the indentation marked by the red square.
-
Pry the plastic opening tool upwards to release the lower back panel.
-
Remove the lower back panel from the device.
-
-
-
Continue moving plastic opening tool around device until back panel is loose enough to remove.
-

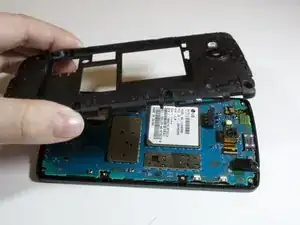

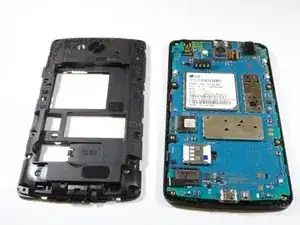

Remove the back panel
-
-
-

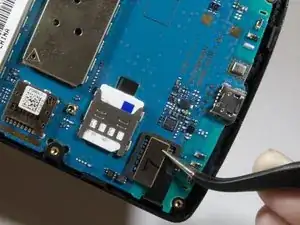

Locate the digitizer connection on the lower left hand side of the device.
-

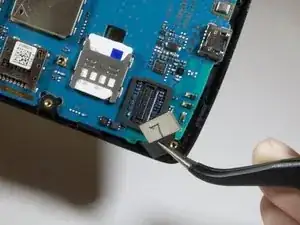

Use the tweezers to lift up and gently remove the connector.
-
-
-

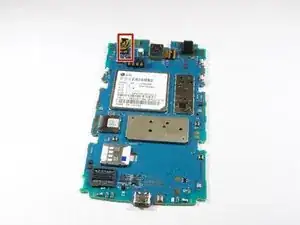

Locate the front camera on the upper left hand side of the device. The camera is marked in red.
-

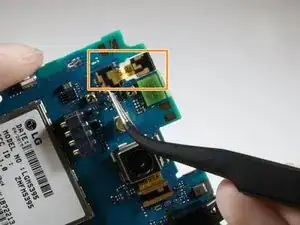

Use the tweezers to remove the front camera from the connector marked in orange.
-

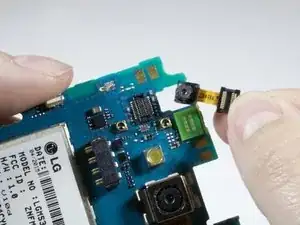

Remove and replace front camera.
-
To reassemble your device, follow these instructions in reverse order.
