LG Optimus F60 Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 4 Minuten

Einleitung

This guide will take you through the process of replacing the power button in an LG Optimus F60. This task should take about 2-4 minutes to complete.

  1. geKywjwQ4LJMMJgk
    geKywjwQ4LJMMJgk
    1RByXYrwZvHjUHTK
    GM3uhgGQZkyWlhvy

    • Hold the phone in your hand and position the small plastic opening tool or your finger under the lip of the phone by the USB port.

    • Pry or lift up on the indent with the opening tool.

    • Remove the back panel.

  2. avNtkVTgUdKoVbQU
    avNtkVTgUdKoVbQU
    YnQ2tKAakMtIvWcy
    ARBY5HlHNCuAFaau

    • Place the small plastic opening tool or your finger at the indentation at the base of the battery.

    • Pry upwards or lift with your finger and remove battery.

  3. bQsgbXn1PCgqCbcr
    bQsgbXn1PCgqCbcr
    adTiJjTaRUCFvyLR

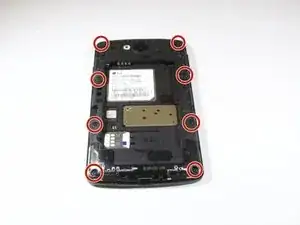

    • Remove the eight 4 mm screws on the inner panel using the phillips #000 Screwdriver

  4. bREKfMikYAdh5LUj
    bREKfMikYAdh5LUj
    EOTM1tTKhSMUBpyu
    pwiTPf3m2WGYAQA5

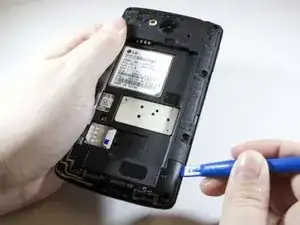

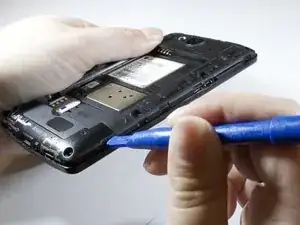

    • Remove inner panel using plastic opening tool.

    • Apply force upwards while wiggling the tool further in.

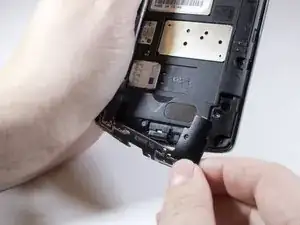

    • Remove bottom of inner panel.

  5. OXFDUkghZbeUsLXF
    OXFDUkghZbeUsLXF
    rtYRCBAIYgxsygSC
    SrbTg3VHUyRVUUN1

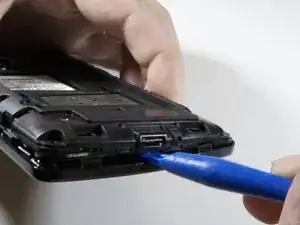

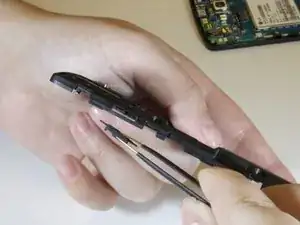

    • Use plastic opening tool to take off the inner pannel.

    • Take out faulty power button replace with new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
