LG Optimus F60 Screen Replacement

Geschrieben von: Kayli Beidler
  • Kommentare: 0
LG Optimus F60 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

6 Minuten

Einleitung

This guide will take you through the process of replacing the screen in an LG Optimus F60. This task should take about 6 minutes to complete.

  1. geKywjwQ4LJMMJgk
    geKywjwQ4LJMMJgk
    1RByXYrwZvHjUHTK
    GM3uhgGQZkyWlhvy

    • Hold the phone in your hand and position the small plastic opening tool or your finger under the lip of the phone by the USB port.

    • Pry or lift up on the indent with the opening tool.

    • Remove the back panel.

  2. avNtkVTgUdKoVbQU
    avNtkVTgUdKoVbQU
    YnQ2tKAakMtIvWcy
    ARBY5HlHNCuAFaau

    • Place the small plastic opening tool or your finger at the indentation at the base of the battery.

    • Pry upwards or lift with your finger and remove battery.

  3. ULJJE2qrGhTiPIQn

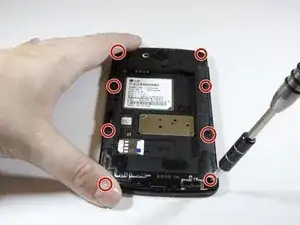

    • Remove the eight 4 mm screws on the inner panel using the phillips #000 Screwdriver

  4. 4MMlCoBCbhWNVFHf

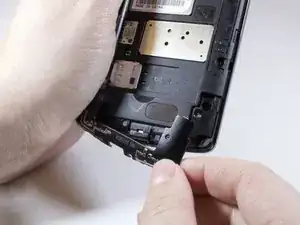

    • Remove bottom of inner panel.

  5. yKAQXqbtA26ikaCJ
    yKAQXqbtA26ikaCJ
    G3VpZx5FSWwsHB3E
    n6DQyNKyXrwiiwbB

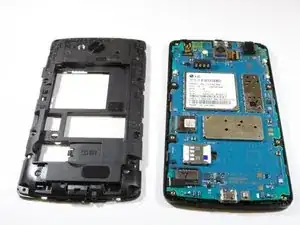

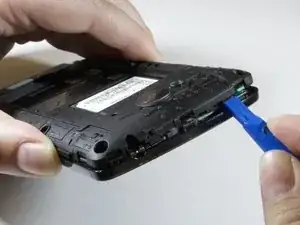

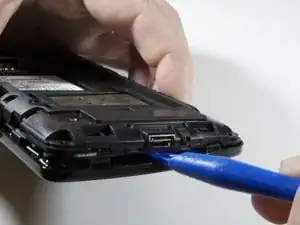

    • Remove inner panel using plastic opening tool.

    • Apply force upwards while wiggling the tool further in.

  6. JlJGRUdKFTGonBPM
    JlJGRUdKFTGonBPM
    n14hMFPM6eYWeMkn
    Mw5Dtef3kyXON3IR

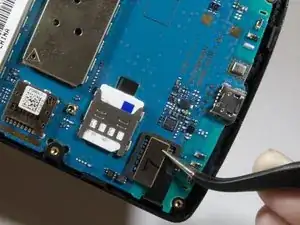

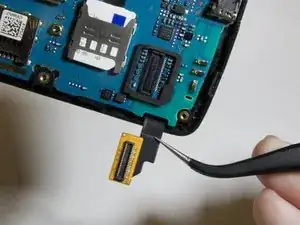

    • Unlatch Connector on bottom left of phone.

  7. 3amLMEWyasCRUrTf
    3amLMEWyasCRUrTf
    XsHLcvTf1XDVejXa

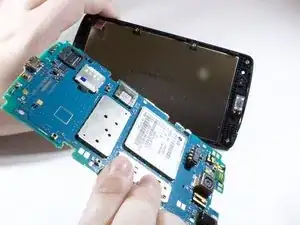

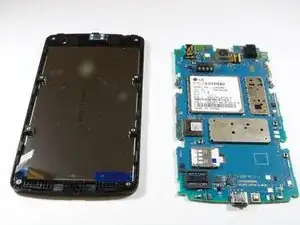

    • Pull motherboard to detach digitizer from the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
