This guide will show how to replace a faulty or broken speaker on a LG Optimus F60. This process is not complicated and can take 8 minutes to complete.
-
-

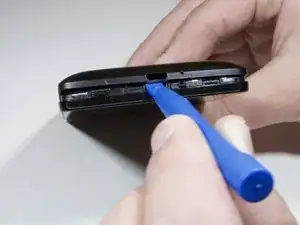

Hold the phone in your hand and position the small plastic opening tool or your finger under the lip of the phone by the USB port.
-
Pry or lift up on the indent with the opening tool.
-

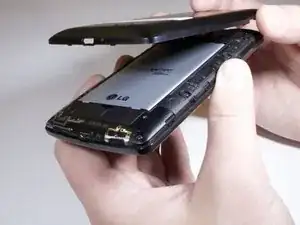

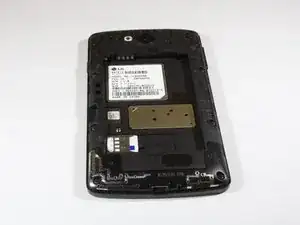

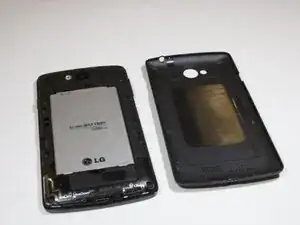

Remove the back panel.
-
-
-

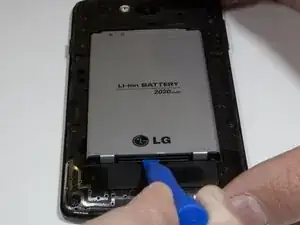

Place the small plastic opening tool or your finger at the indentation at the base of the battery.
-

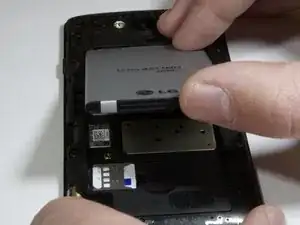

Pry upwards or lift with your finger and remove battery.
-
-
-

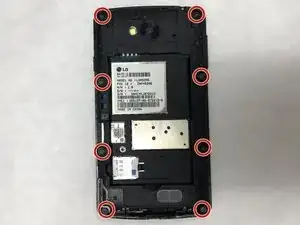

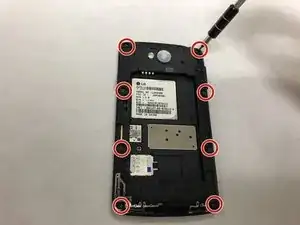

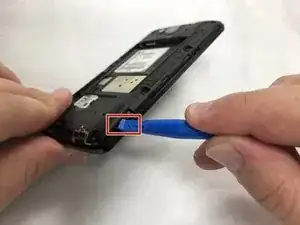

Insert the iFixit opening tool in the indentation.
-

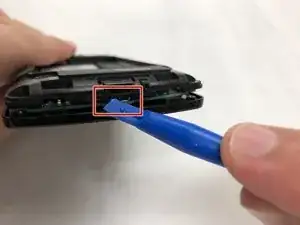

Pry the plastic using the opening tool to remove the lower back panel.
-
Remove the back panel from the device.
-
-
-

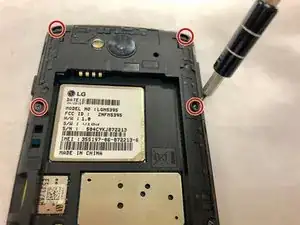

Start at the changing port, and continue to pry at the edges until loose enough to remove.
-

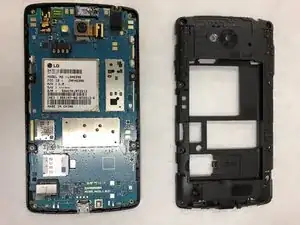

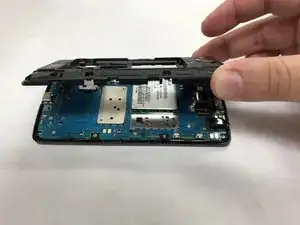

Remove the back panel.
-
-
-
Gently pry the foam seal from around the speaker.
-

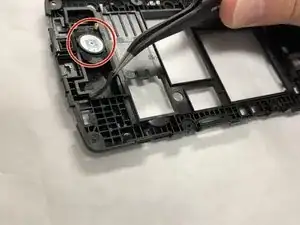

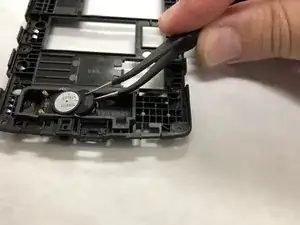

Pry out speaker using tweezers.
-

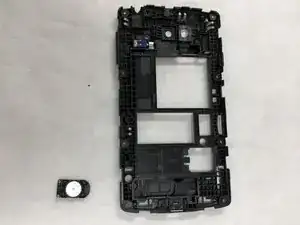

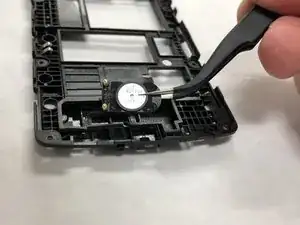

Remove and replace the speaker.
-
To reassemble your device, follow these instructions in reverse order.
