Einleitung
How to replace the camera in your LG Optimus Fuel. You may want to do this if your camera has become damaged and/or has quit working properly.
Ersatzteile
-
-
Use the curved opening at the center-bottom of the battery to carefully remove the old battery.
-
-
-

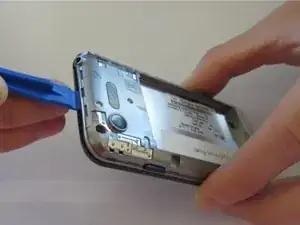

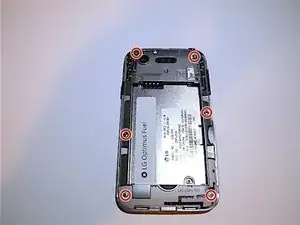

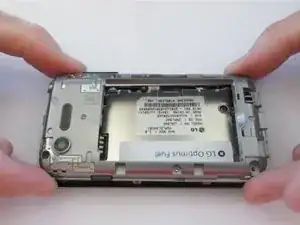

Remove the six 1.4mm screws using a Phillips head screwdriver with a size PH00 head and remove the back panel with a plastic opening tool.
-
-
-

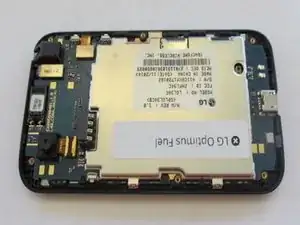

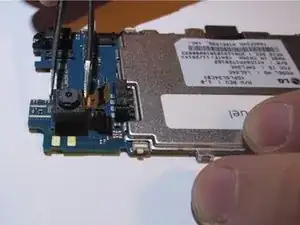

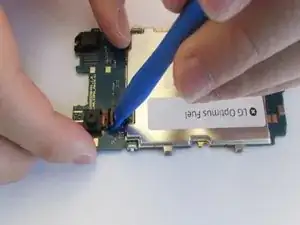

The camera has been secured to the circuit board using an adhesive. Use a plastic opening tool and precision tweezers to remove it. Don't be afraid to use a little force when pulling at the camera.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
