LG Optimus G Battery Replacement

Geschrieben von: Eneider Colina

Kommentare: 5

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide explain step by step how to replace the battery of your LG Optimus G with a couple of tools.

Werkzeuge

Schritt 2

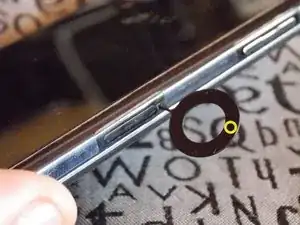

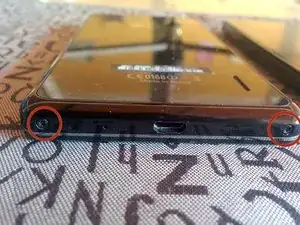

Remove the 2 screws holding the back cover using a T5 screwdriver.
Use a guitar pick or a plastic opening tool to free the clips on the top and each side of the back cover.

Schritt 3

Use an opening pick to pry off the rear case.

Use an opening pick to pry off the rear case.

Schritt 4

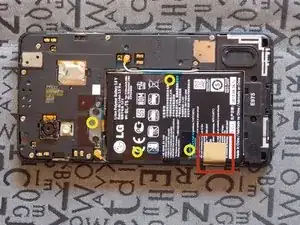

Remove the tape over the battery, the screws and the antenna connector cord.
Be careful removing the golden tape because it is below the antenna connector cord.

Schritt 5

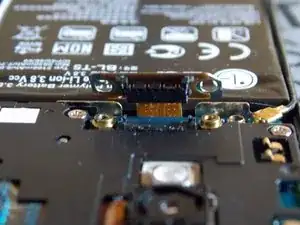

Remove the the screws securing the battery cable connector.
Disconnect the battery cable.

Schritt 6

The battery is held down by some adhesive.

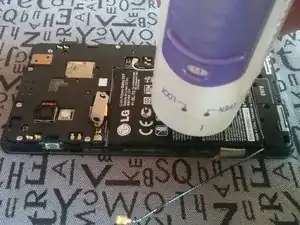

Carefully heat the battery to loosen the adhesive holding it to the case.

Schritt 7

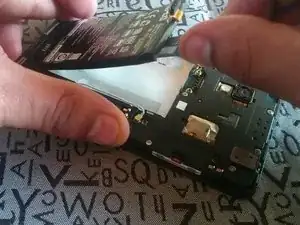

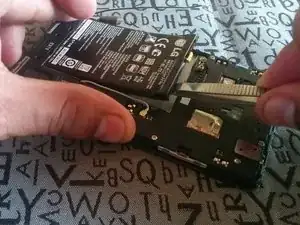

Pry the battery up from the case.
Be very careful not to puncture the battery when prying. Use blunt plastic tools.

Schritt 8

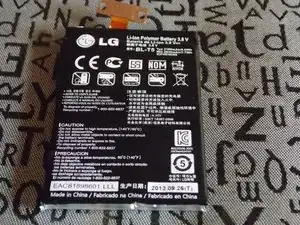

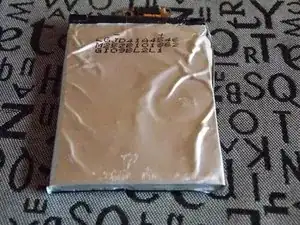

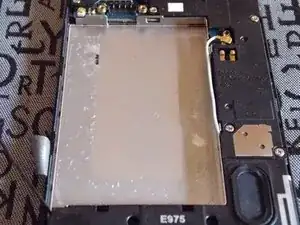

The battery is removed.
Replace the battery with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.

5 Kommentare

“Heat gun”is too vague. So is IR thermometer. What temperature to soften adhesive? How would I know if I was buying the right things?

Deep - 11/11/17

I’m not using a heat gun, it´s a hairdryer; on this case the hairdryer hardly exceeds the 60°C and that is enough to remove the battery. If you want to buy a heat gun you must be careful not to use more than 50 °

Eneider Colina - 14/11/17

Where do you suggest ordering a replacement battery from?

snack le - 12/12/17

you can search it on Amazon and buy directly from LG.

Eneider Colina - 13/12/17
