LG Optimus L7 P705 Charger Port Replacement

Geschrieben von: Bruna
  • Kommentare: 0
LG Optimus L7 P705 Charger Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The following guide explains how to replace the charger port.

  1. aliNa1BnmS4XYJRg
    aliNa1BnmS4XYJRg
    ukPjsYpYKpVC3Asm

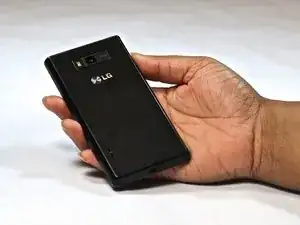

    • Remove back cover.

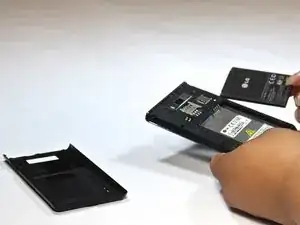

    • Remove the battery and simcard.

  2. BhKJYBA2P2SNnaxt

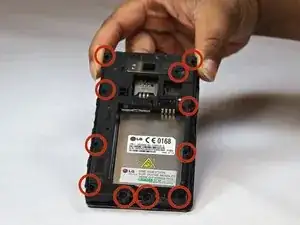

    • Remove the 12 screws (with the phillips head 000) around frame and near sim and sd cards.

  3. OEIFBlKAgTMFlgkr

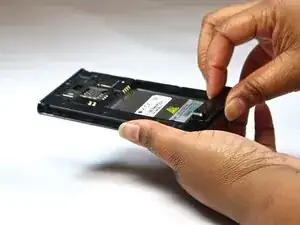

    • Remove bottom plate where the charger port is located.

  4. ZfLIXtE6l4qrLsDX
    ZfLIXtE6l4qrLsDX
    FL1WwcN2dqALQ2NH

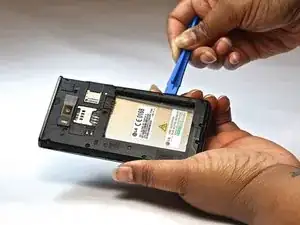

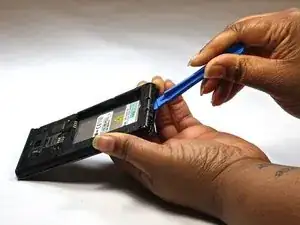

    • Remove the back piece.

  5. wODJQxiEcRshfQpG

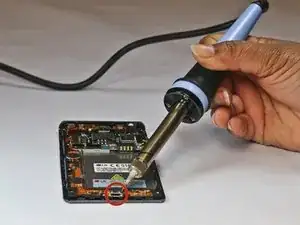

    • Using soldering iron, loosen the charger port from the bottom of the device.

  6. mE4iPFBBe1IYoctn

    • Using a smudger, lift the charger port and replace as necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
