Einleitung

The following guide explains how to replace the headphone jack.

  1. ZOIsLmKHL1XDJDTP
    ZOIsLmKHL1XDJDTP
    tQHfVVQ6xtjxcTBj
    • Insert a plastic opening tool between the seams of the device and pry the back cover away from the phone.

    • Remove the battery and simcard.

  2. oJdfjNOhOXP4sDB3
    • Remove twelve 3mm screws (with the phillips head 000) around frame and near sim and sd cards.

  3. kLIVu4PESOCyIORL
    • Remove bottom plate where the charger port is located.

  4. Jd4tIGOxJCCWWCgG
    Jd4tIGOxJCCWWCgG
    GMny4jruyeJY5Vta
    • Insert a plastic opening tool between the seams of the device and apply some pressure to lift off the cover.

  5. Quk1dwTWM44aHZ6i
    Quk1dwTWM44aHZ6i
    fkGYBjUGqTDm2JKA
    • Flip over to the face of the device.

    • Lift off glass screen (display).

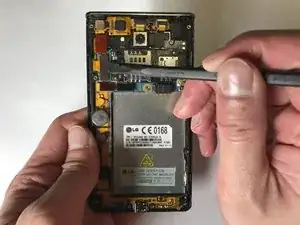

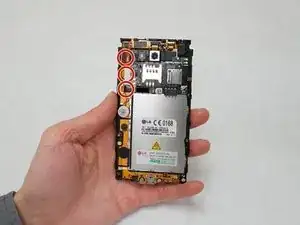

  6. xn1KOWpIs6Mndums
    xn1KOWpIs6Mndums
    mLF6eB5DYDcORgFe
    • Flip over to the back of the device

    • Using the plastic spudger, lift off the three board-to-board connectors on the left-hand side of the device.

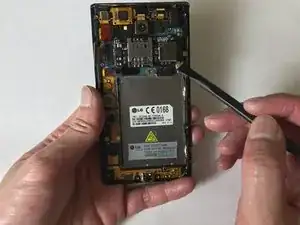

  7. 4riNGHeH6ppmEQYJ
    • Using a plastic spudger, lift off the wire connector at the right bottom of the board.

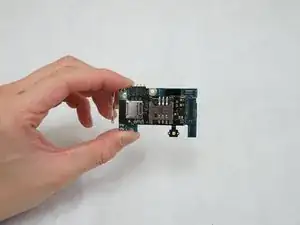

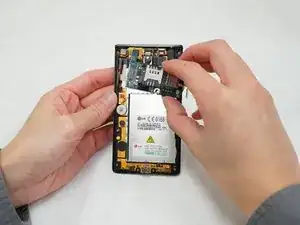

  8. rc6xObpiRJV1L5oT
    rc6xObpiRJV1L5oT
    oKVg5KV6vHPATgIx
    • Detach the mount including both the SIM card and the motherboard from the device.

  9. VtLonpOH2ADOfKET
    • Lift off the connector using the plastic spudger.

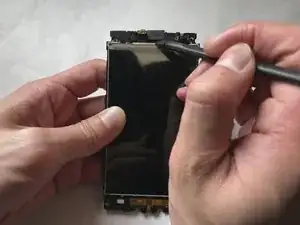

  10. vQHxaoHLANTIJRxA
    • Lift the speaker connector using the plastic spudger.

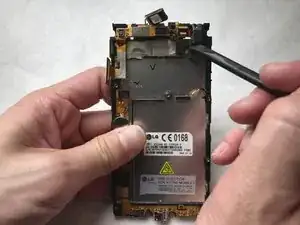

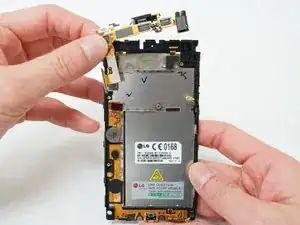

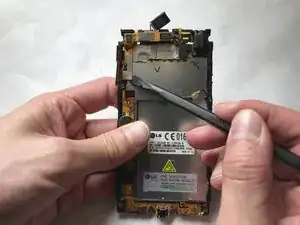

  11. ypBmbnTCkcO2G3XF
    ypBmbnTCkcO2G3XF
    X3GtOaamJNHarOqT
    bM1FKSinKiAReCgC
    • Flip over to the back of the device. Lift off the connector on the left using the plastic spudger.

    • Lift off the headphone jack connector on the top right using the plastic spudger.

    • Replace the board containing the headphone jack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
