LG Optimus L7 P705 Home Button Replacement

Geschrieben von: Bruna
  • Kommentare: 1
LG Optimus L7 P705 Home Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The following guide explains how to replace the home button.

  1. X3b3VFOGLTTJajTu
    X3b3VFOGLTTJajTu
    HShRQhw6TOULsDPG

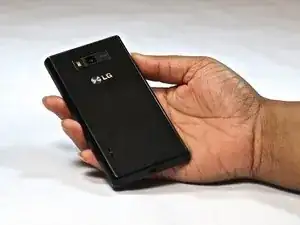

    • Insert a plastic opening tool between the seams of the device and pry the back cover away from the phone.

    • Remove the battery and SIM card.

  2. OCaiZHFD3UdAj3Kp

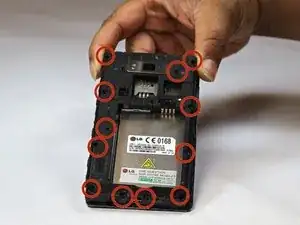

    • Remove the twelve screws using the Phillips 000 screwdriver.

  3. FGwBVlLKgiCNDuTZ

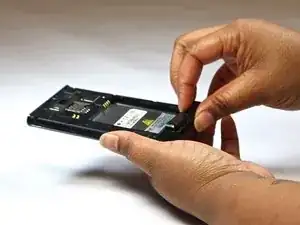

    • Remove bottom plate where the charger port is located.

  4. k4TLjHYDEM1VHLBq
    k4TLjHYDEM1VHLBq
    NmpYaRnethBFIQJ4

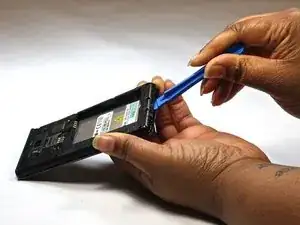

    • Insert a plastic opening tool between the seams of the device and apply some pressure to lift off the cover.

  5. Y1PvJjEOcSCFPePn

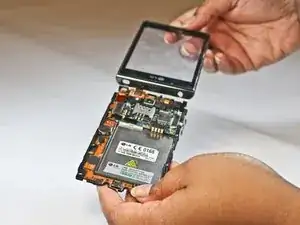

    • Flip over to the face of the device.

    • Lift off the glass screen (display).

  6. DibhHARoSeT5ZGfB

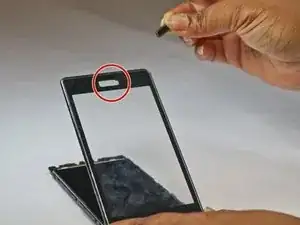

    • Remove the home screen button. Replace as needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Bruna

Mitglied seit: 09/10/14

525 Reputation

Ein Kommentar

in the step 2, one red ring is in the wrong position.

The ring in the midle at the left side is in the center of the telephone

Tiago -
