LG Optimus L9 P769 Micro-USB Port Replacement

Geschrieben von: Kayden G
  • Kommentare: 0
LG Optimus L9 P769 Micro-USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

This guide will detail how to replace the Micro-USB Port on the LG Optimus L9 P769

  1. gYdgSCmOJN5r1kG1

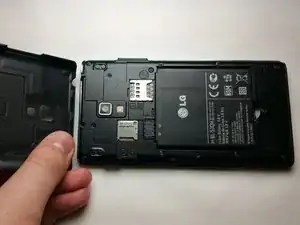

    • Power off the device and gently lift the battery cover off to access the battery

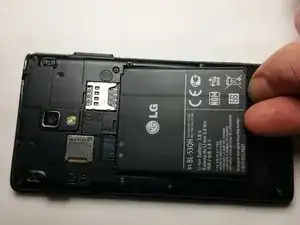

  2. Pxhap5sBeVCitCNc

    • Lift and remove the battery from the notch in the edge of the battery compartment

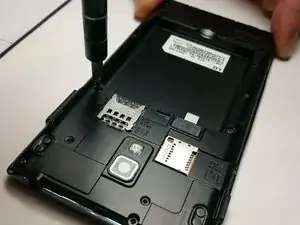

  3. MTFdWvDNtTZDRe4G
    MTFdWvDNtTZDRe4G
    2wvvExUKxDccujMW

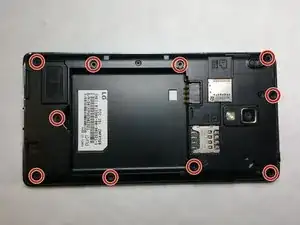

    • Remove all 10 of the 4.5mm screws that hold the back frame to the case of the phone using a PH000 screwdriver.

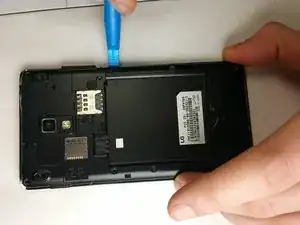

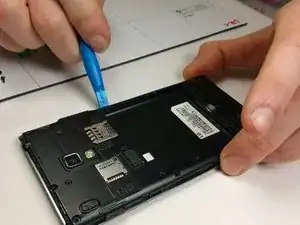

  4. hSChOMB1bXnZxaIj
    hSChOMB1bXnZxaIj
    PGMq1tE4Z6YHa6vT

    • Using a small prying tool, carefully remove the back frame by prying on the sides of the device.

    • Do be careful when prying back frame and removing it as too much force may result in damaging the frame.

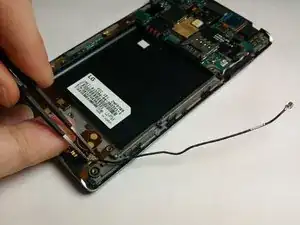

  5. bYJHrvhPVxdlTvdZ
    bYJHrvhPVxdlTvdZ
    iP5Mdeg5U1hhNoPn
    SWfWvjj5hJmpYClv

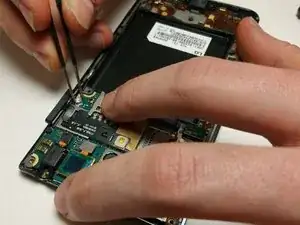

    • Remove both connections of the antenna by pulling up with tweezers

  6. SSTSvaiUJgPEXgEJ
    SSTSvaiUJgPEXgEJ
    L1ecnxR5xdqnmgWI
    wdgBjWu4JAcyXgjC

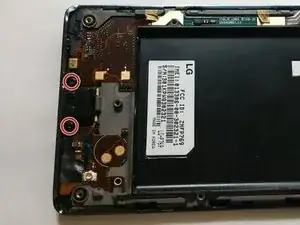

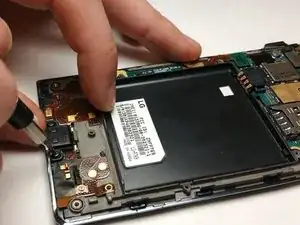

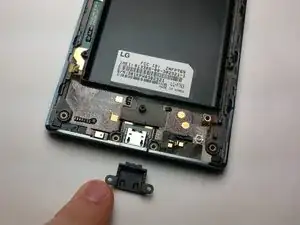

    • Remove Micro-USB Cache by unscrewing both 2.9mm screws with the PH000 headtype

  7. SYZZeTf2kKSLXnZM

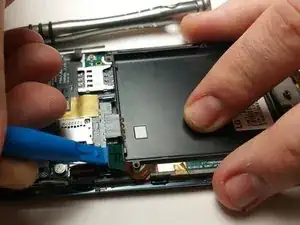

    • Detach module from motherboard using a prying tool

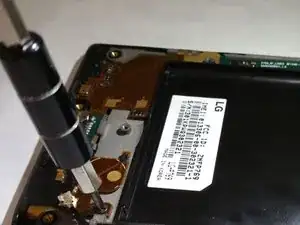

  8. mg1XLkR63TMIoXQn
    mg1XLkR63TMIoXQn
    54god3Pv1xFXOG2Z

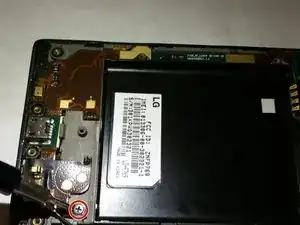

    • Remove 1.8mm screw to free Micro-USB module for removal using the PH000 headtype

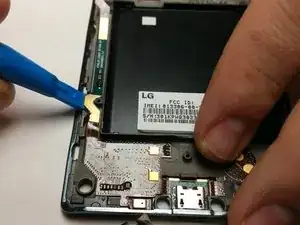

  9. lHNA1VWTmJXAuPir
    lHNA1VWTmJXAuPir
    Cas2dyKMiYeXuScU

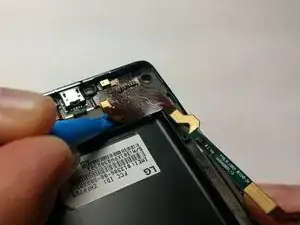

    • Use a small prying tool to detach the Micro-USB circuitry from the case of the phone

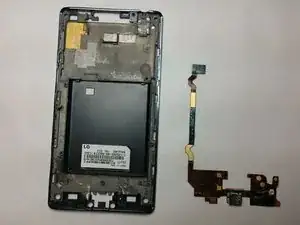

  10. oDrarDyHroLc6pQZ

    • Comparison showing the Micro-USB module against the empty phone casing

Abschluss

To reassemble your device, follow these instructions in reverse order.
