LG Optimus T Camera and Camera Mount Replacement

Geschrieben von: stacey
  • Kommentare: 0
LG Optimus T Camera and Camera Mount Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

This guide will show you step by step instructions on how to replace the camera on your LG Optimus T.

  1. HkXZbUbAovQMcCkr
    HkXZbUbAovQMcCkr
    t2ECoERnO6pjAR2m

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down your device before you begin.

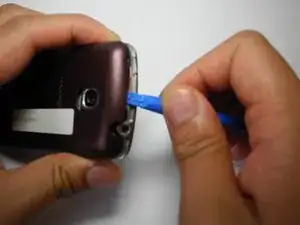

    • Use a plastic opening tool to remove the phone's back cover. At the top of the phone there are indentations to insert the spudger and pop the case off

  2. iGEwm5xER1ITmXZl

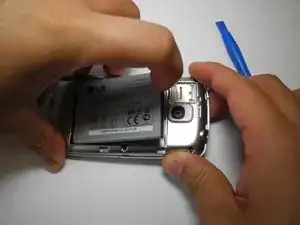

    • Remove the battery by pulling up on the battery using the indentation to the left of the camera lens

  3. 2uMruZFAATHOaKPC

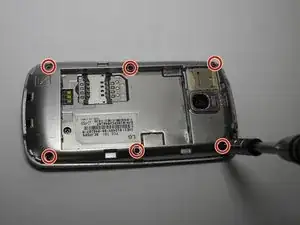

    • Use a J0 screwdriver to remove the 6 highlighted screws

  4. ACpeLGks3yORI33P
    ACpeLGks3yORI33P
    QIePx1ZYrRMuCYwH

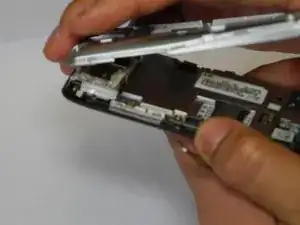

    • Remove interior case using indentations on the top and bottom to insert the spudger to pop off the interior case

    • You might have difficulty popping the interior case off. You may use the metal spudger here with caution if the plastic one fails

  5. R5bo6X2dViOiQAoK

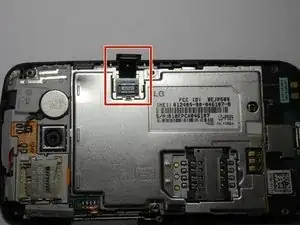

    • Unhook the connector tab

  6. 6ZFCXAqO2n5xVCLj

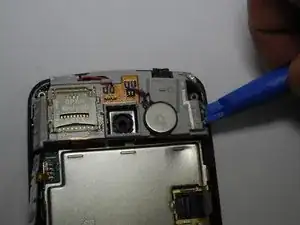

    • Remove SD card mount by inserting the plastic opening tool on the right side of the device to pop mount off

  7. XiZPs4gssX6UvJeg
    XiZPs4gssX6UvJeg
    SkjNt6JAEtwtVIVE

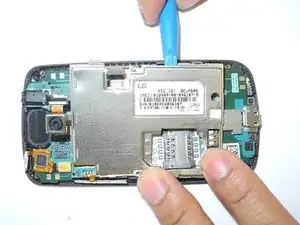

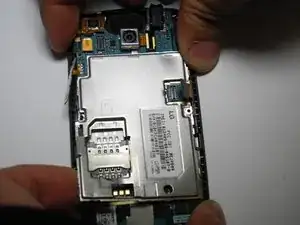

    • Remove metal panel by inserting plastic opening tool into the four retaining points and remove panel

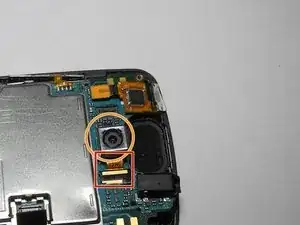

  8. Njc6QqASEWs2OAhq

    • disconnect camera connector from motherboard by spudger

    • Once disconnected, remove camera using tweezers

Abschluss

To reassemble your device, follow these instructions in reverse order.
