LG Optimus T Motherboard Replacement

Geschrieben von: stacey
  • Kommentare: 0
LG Optimus T Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

If your LG Optimus T will not turn on, or the battery will not charge replacing the motherboard may solve these issues.

  1. TVYvgGVXlEefWXBe
    TVYvgGVXlEefWXBe
    1NrHqsGZvQ4sJD1G
    EsqTDPOLae5JjD2U

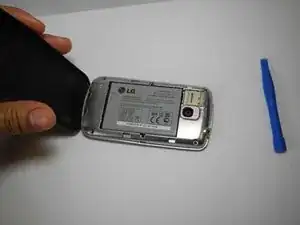

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

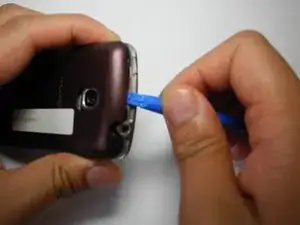

    • Using a prying device, such as a plastic opening tool, remove the phone’s back cover. At the top of the phone, there’s an indentation to put the Spudger into to pop the case off

  2. XRFyQRgtHUtbdVVL

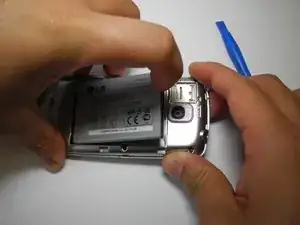

    • Remove the battery. There’s an indentation to the left of the camera lens to pull up on the battery with your finger

  3. qUNLLTaSHfReVSSk

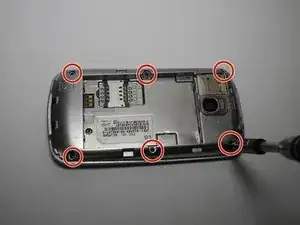

    • Use a J0 screwdriver to remove the six 4.5mm screws.

  4. W6EClHAEtNNocTDA
    W6EClHAEtNNocTDA
    ZBWvqeHXgBLZgEUc

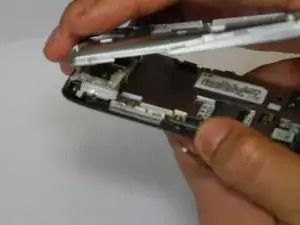

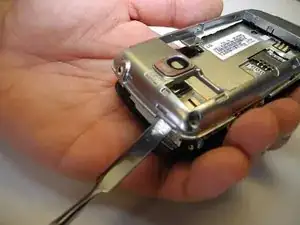

    • You might have difficulty popping the interior case off. You may use the metal spudger here with caution if the plastic opening tool fails

    • Remove interior case. Insert the spudger into the indentations at the top, or bottom of the phone to pry off the interior case.

  5. N62TbXnoSttPMXR1

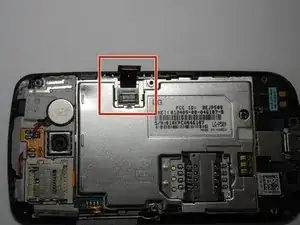

    • Pull up on connector tab

  6. ZFOw6dmOurCkbhCf
    ZFOw6dmOurCkbhCf
    wjC4EhfHVypDpnPy

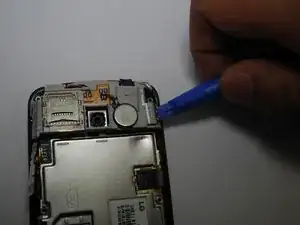

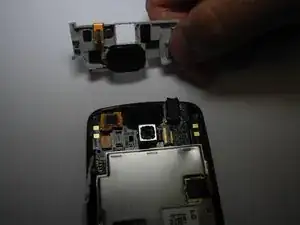

    • Remove SD card mount. Insert the plastic opening tool on the right side to pop off

  7. bmENBQx5dNDvWWXt
    bmENBQx5dNDvWWXt
    VECCZbIJFwmsjTe2

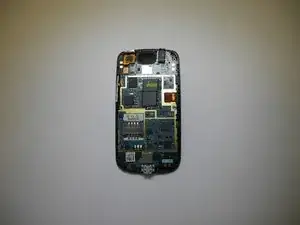

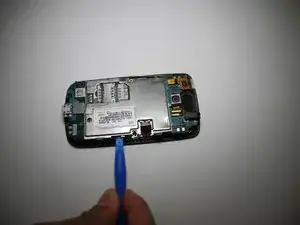

    • Remove metal panel

    • There are four retaining points to insert plastic opening tool and pop off panel

  8. DyqxRIaF3X6uZJoT

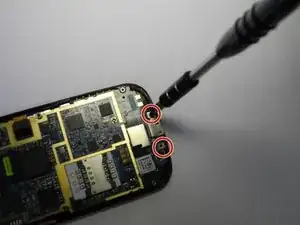

    • Use a J0 screwdriver to remove the two 1.8mm screws from charging port. (Charging port and motherboard are connected.)

    • Remove motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
