LG Optimus V Antenna Replacement

Geschrieben von: Joseph Pasquantonio
  • Kommentare: 0
LG Optimus V Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

This will walk you through the steps that are required to disassemble the LG Optimus V, and replace the antenna inside. Be cautious! Electronics can be delicate. Make sure to have the iFixit Opening tool and the Pro Tech Toolkit.

  1. yicpTvVxpgL5HXgw

    • Turn the LG Optimus V over, so that the back cover is facing upward.

  2. 4DYCIGeRWKDFMm6n

    • Locate the opening above the camera.

    • Use a spudger to detach the back cover.

  3. sOlXgE3tDvmRMwEG
    sOlXgE3tDvmRMwEG
    bVKnbdwgkEoojEBq
    3DLcUDUe5CTkLTch

    • Gently remove the battery with your spudger.

  4. QeRSSJr1mSRZBUPX
    QeRSSJr1mSRZBUPX
    GywZsPZvXJLU3cGm

    • Remove the six screws on the silver casing.

    • Use the plastic opening tool to remove the silver casing.

  5. 5eCjDS6aBkkGoJUT
    5eCjDS6aBkkGoJUT
    CZ4O5Sos3QrSaIDx
    ljsDKgWfUXUvcZIU

    • Use a plastic opening tool to remove each area holding the parts together.

  6. KZRO2jxeugK5Wp6D
    KZRO2jxeugK5Wp6D
    EyUSRXGZZ4MYcG1X

    • Use a plastic opening tool to remove the small black and yellow piece that reads Y3114C.

    • Use a plastic opening tool to pry off the camera.

  7. fE1LoZV26XJZRsZO

    • This part, circled in red, is the antenna.

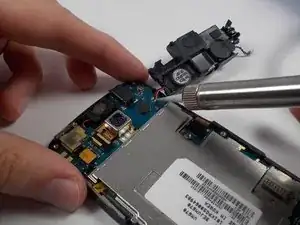

  8. M3GDDklpEFFc2No3

    • Solder off the antenna, and solder on the new one. The antenna is now replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
