LG Optimus V Speaker Replacement

Geschrieben von: Joseph Pasquantonio
  • Kommentare: 0
LG Optimus V Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

If you own a LG Optimus V smartphone and notice that the sound quality has deteriorated, or there’s no sound at all, it's possible that the speaker has been damaged or has worn out over time. In such cases, replacing the speaker is a practical solution to restore the sound quality of your device. This guide will provide you with step-by-step instructions on how to replace the speaker in your LG Optimus V, and bring your device back to life.

  1. yicpTvVxpgL5HXgw

    • Turn the LG Optimus V over, so that the back cover is facing upward.

  2. 4DYCIGeRWKDFMm6n

    • Locate the opening above the camera.

    • Use a spudger to detach the back cover.

  3. sOlXgE3tDvmRMwEG
    sOlXgE3tDvmRMwEG
    bVKnbdwgkEoojEBq
    3DLcUDUe5CTkLTch

    • Gently remove the battery with your spudger.

  4. QeRSSJr1mSRZBUPX
    QeRSSJr1mSRZBUPX
    GywZsPZvXJLU3cGm

    • Remove the six screws on the silver casing.

    • Use the plastic opening tool to remove the silver casing.

  5. 5eCjDS6aBkkGoJUT
    5eCjDS6aBkkGoJUT
    CZ4O5Sos3QrSaIDx
    ljsDKgWfUXUvcZIU

    • Use a plastic opening tool to remove each area holding the parts together.

  6. KZRO2jxeugK5Wp6D
    KZRO2jxeugK5Wp6D
    EyUSRXGZZ4MYcG1X

    • Use a plastic opening tool to remove the small black and yellow piece that reads Y3114C.

    • Use a plastic opening tool to pry off the camera.

  7. RQEPnwJWg2UZSCLD

    • This is the area that holds the speaker.

  8. LqOhaATYFft4n1Rb
    LqOhaATYFft4n1Rb
    GSYJiANxyfyvLiaO

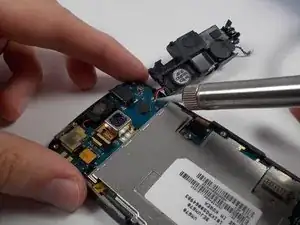

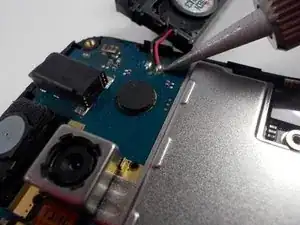

    • To fix the speaker, use a soldering iron to heat up the two areas where the wires connect to the motherboard. Then, remove the old speaker and replace it with a new one by soldering it back onto the same areas.

    • Once you’re done, your speaker should be working properly again.

Abschluss

To reassemble your device, follow these instructions in reverse order.
