LG Phoenix 2 Headphone Jack Replacement

Geschrieben von: Sarah Popp
  • Kommentare: 0
LG Phoenix 2 Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If you need to install a new headphone jack on your LG Phoenix 2, use this guide to disassemble and replace the damaged part. For this guide you will need a plastic opening tool and a Phillips #000 screwdriver. These steps will be straightforward and easy to follow, but the pieces should be handled with care, so as to not damage or misplace any needed components.

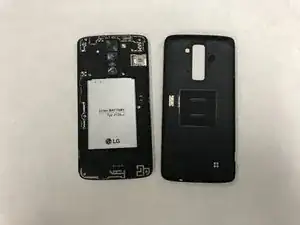

  1. sbmMsxBlPlF6NxO2
    sbmMsxBlPlF6NxO2
    itUTVdtEZOSAd2H5

    • Insert a fingernail into the notch on the bottom right corner of the phone.

    • Pop off the back cover off of your device.

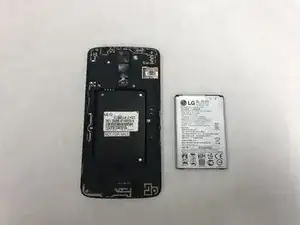

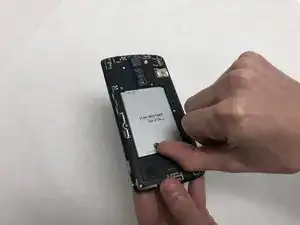

  2. RfMR1GhoVYlVq1bs
    RfMR1GhoVYlVq1bs
    aIZvhUYIDUwZwyxF

    • Insert a fingernail in the notch under the battery.

    • Remove the battery.

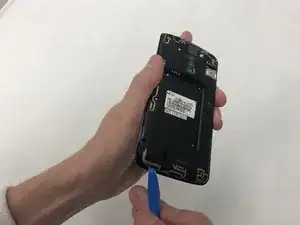

  3. 4vpmFepIAIQjcjwF
    4vpmFepIAIQjcjwF
    fodARwBQ1DjNKPkm

    • Insert the opening tool under the bottom cover.

    • Pop the bottom cover off.

  4. WQsfeRIthcjOaM25

    • Remove eight 3mm screws using a Phillips #0 screwdriver.

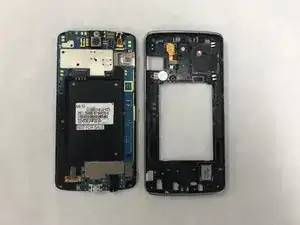

  5. wq4wWONASTttXHYH
    wq4wWONASTttXHYH
    HSgOcGKCBnOV4Meh

    • Insert the opening tool in between the phone screen and the silver trim.

    • Pop off the trim.

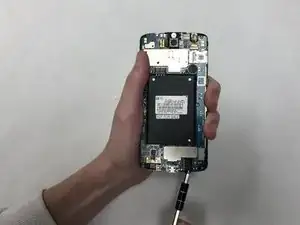

  6. CpvDLVR5Cf5j3TPE
    CpvDLVR5Cf5j3TPE
    G1QRPQvKZ6J6jC3N

    • Insert a screwdriver into the headphone jack.

    • Pop out the headphone jack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
