If you need to install a new outside trim on your LG Phoenix 2, use this guide to disassemble and replace the damaged outer trim. For this guide you will need a plastic opening tool and a Phillips #000 screwdriver head. These steps will be straightforward and easy to follow, but the pieces should be handled with care, so as to not damage or misplace any needed components.

  1. hT6HHRpdF3nqcKEI
    hT6HHRpdF3nqcKEI
    qBPVFBEPej3TG62j
    • Insert a fingernail in the notch on the bottom right corner of the phone.

    • Pop off the back cover off of your device.

  2. tKxYGPr4GWHkMFoL
    tKxYGPr4GWHkMFoL
    NVtJ41ZjMP3iRoBY

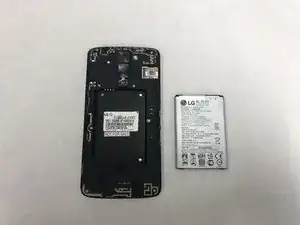

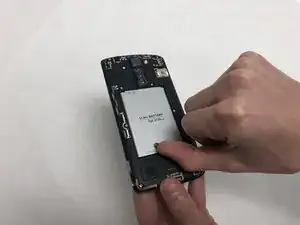

    • Insert a fingernail in the notch under the battery.

    • Remove the battery.

  3. EdlJ3HLHV4mEXLIs
    EdlJ3HLHV4mEXLIs
    y3JHQbEugDjLFU4Q

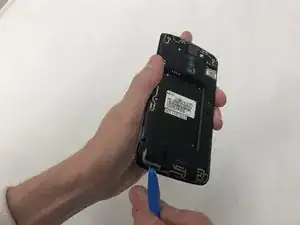

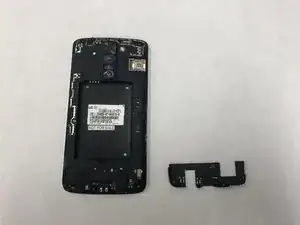

    • Insert the opening tool under the bottom cover.

    • Pop out the bottom cover.

  4. MtYFNhFGVwF6HXdv
    • Remove eight 3mm screws using a Phillips #0 screwdriver.

  5. XoQVYYUNSXqVfZBC
    XoQVYYUNSXqVfZBC
    VxTGTJePpTKBlZLL

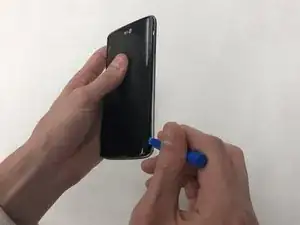

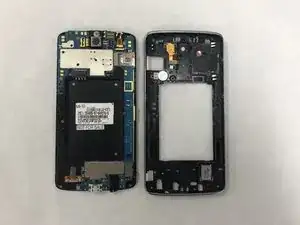

    • Insert the opening tool in between the silver trim and the screen.

    • Pop off the trim.

Abschluss

To reassemble your device, follow these instructions in reverse order.
