Einleitung
This guide will walk you through the process of replacing a speaker in an LG Phoenix 2. A speaker replacement may be needed if no sound comes out of the speaker.

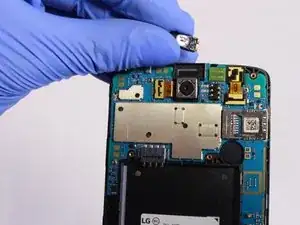

The speaker model used in this phone is a KRP621 W1P speaker.
-
-
Place a fingernail in the notch at the bottom edge of the phone.
-
Pull on the back cover with one hand while keeping the rest of the phone steady, and run your fingernail along the edge.
-
-
-

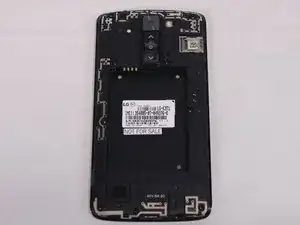

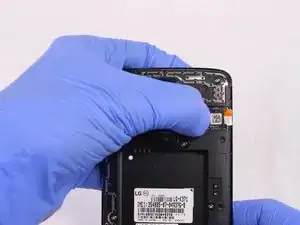

Locate the SIM card in the top right corner on the back of the phone.
-
Remove the SIM card by pushing it with your thumb from left to right.
-
-
-

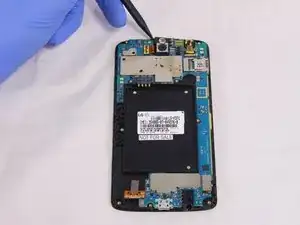

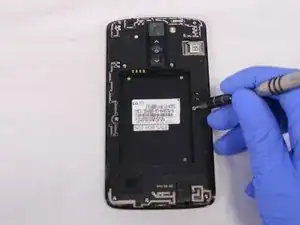

Remove all 9 screws on the back by using a Phillips head #J00 screwdriver.
-
To remove the screws rotate them counterclockwise.
-
-
-

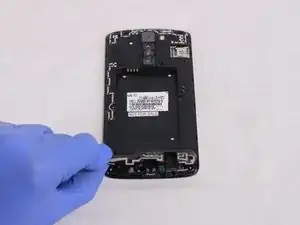

Insert a plastic opening tool in the split at the bottom of the phone (between the bottom shield and the rest of the phone).
-

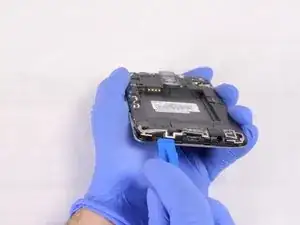

Pry the bottom shield to separate it from the phone.
-

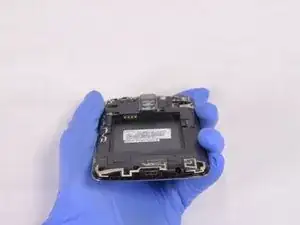

Once it is loose you should be able to remove it with your hand.
-
-
-

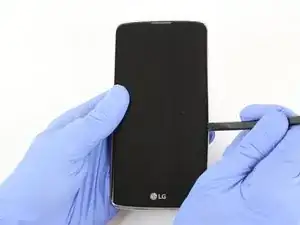

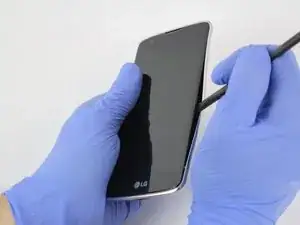

Insert the flat end of the Spudger between the screen and the chromed frame.
-

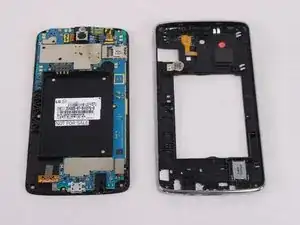

Once inserted, run the Spudger along the frame to separate the front part of the phone from the back shield.
-
To reassemble your device, follow these instructions in reverse order.
