Einleitung
This guide is made to help remove the screen from your phone if you are having problems with it or need to replace it. Be careful while removing the back plating, mid plating, and screen. If this is your first time removing a touchscreen seek the help of a professional, because you may accidentally caused the image on the screen to after you put the phone back together.
-
-

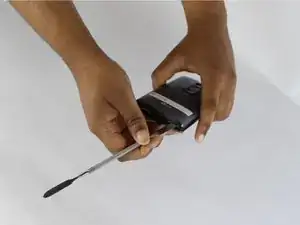

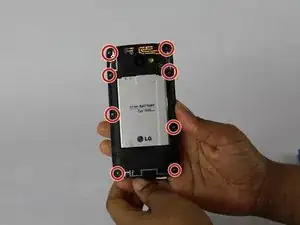

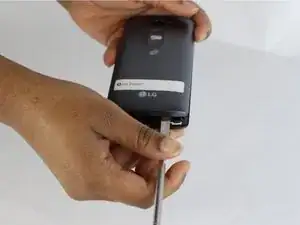

Remove the eight 4mm screws along the side of the mid panel using the Phillips #000 screwdriver head.
-
-
-

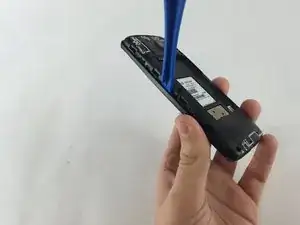

Slide a plastic opening tool between the mid and front panel to remove the middle panel.
-

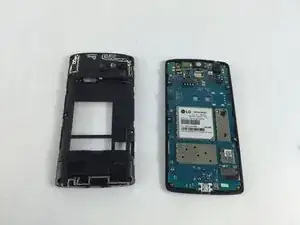

Place the mid panel to the side.
-
-
-

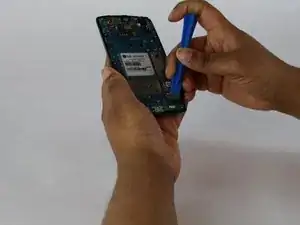

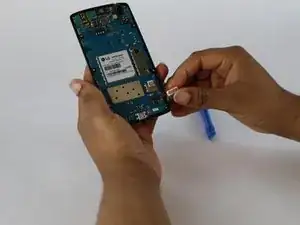

Detach the motherboard and touchscreen from each other by using a plastic opening tool.
-

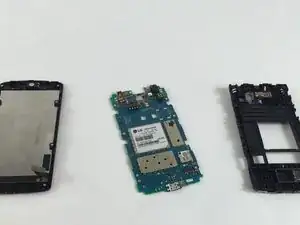

The motherboard will then be free from the phone.
-
-
-

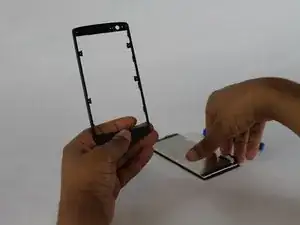

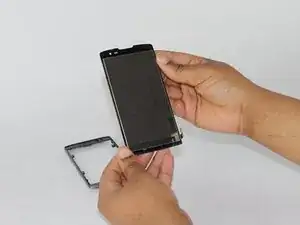

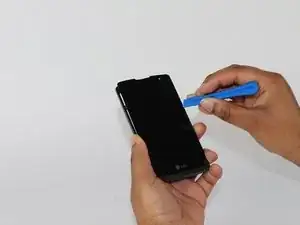

After removing the motherboard, slide a thin plastic opening tool between the screen and the frame.
-
To reassemble your device, follow these instructions in reverse order.
