Einleitung
Before continuing, make sure the device is powered down.
Werkzeuge
-
-

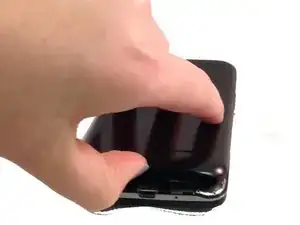

To remove the back, insert thumbnail into MicroUSB port, and pull up to loosen back.
-
Use nail to loosen case on all four sides. Once loose, remove back case.
-
-
-

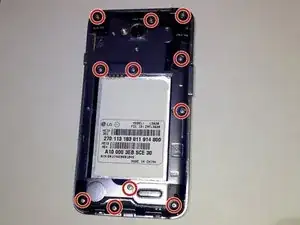

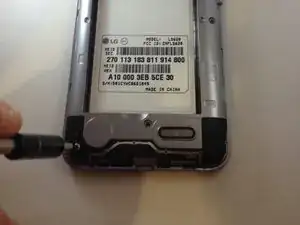

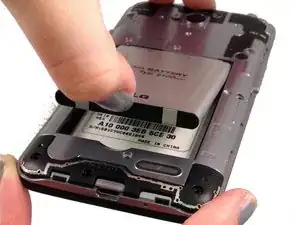

Once the back cover and battery are removed, use the Phillips #J000 screwdriver to remove all 11 screws located around the plastic midframe.
-
-
-

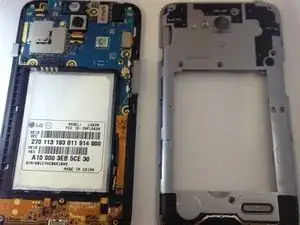

Using the plastic opening tool, carefully pry and separate the plastic midframe from the rest of the phone.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
