This is a guide to replace a broken or damaged front camera on the LG Rebel. this could apply to having a cracked screen or shattered front camera. Following these steps will help you in replacing your front camera.
Werkzeuge
-
-
Turn phone over to its front side.
-

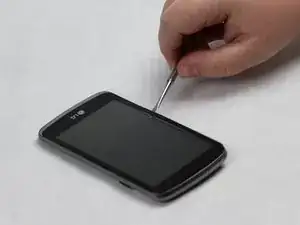

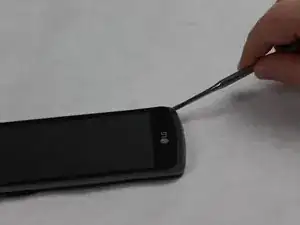

Use a spudger to begin removing the screen by the right hand corner. Begin to move the tool around the edges of the screen.
-
-
-

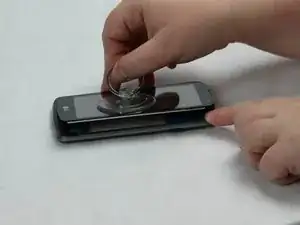

Once you have loosened the grip around the edges, pop off the screen using a suction cup.
-

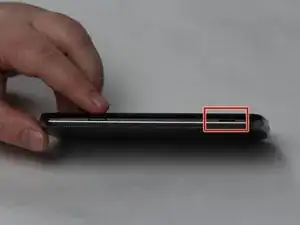

Once the front screen is removed, place the phone on its side and find the groove located on the side.
-

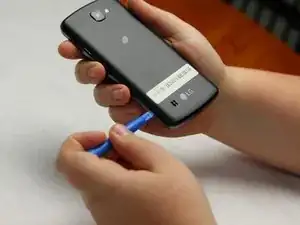

Use the plastic opening tool to pop open the black plastic covering.
-
Remove black plastic cover.
-
-
-

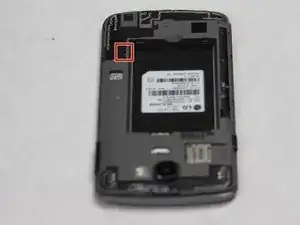

Locate the small groove on the back of the phone near the bottom.
-

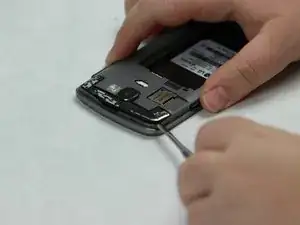

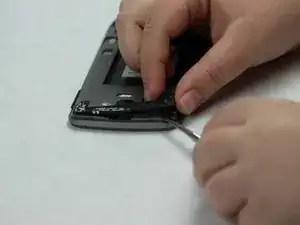

Use the metal spudger to pop open the black plastic covering.
-
Remove black plastic covering.
-
-
-

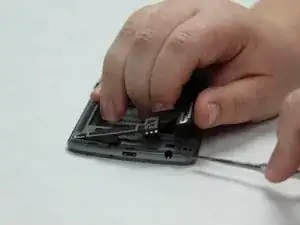

Use the metal spudger to pop up the black plastic covering near top of phone.
-
Remove the black plastic covering.
-
-
-

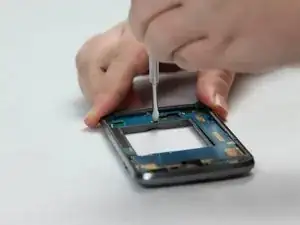

Remove the motherboard with a spudger.
-

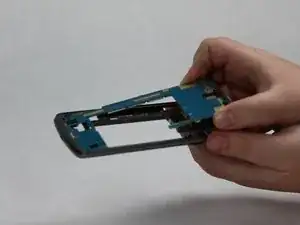

Slowly begin to lift motherboard with your hand carefully.
-

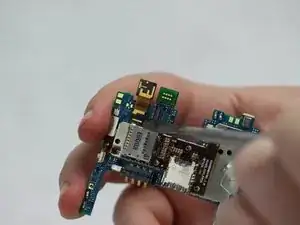

Once the motherboard is completely off, set the phone to the side and focus on the small black box with a square tail (which is the front camera).
-
To reassemble your device, follow these instructions in reverse order.
