LG Rumor Touch Keyboard Pad Replacement

Geschrieben von: Creed Borden
  • Kommentare: 0
LG Rumor Touch Keyboard Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide details the process of removing the keyboard from an LG Rumor Touch. Installation of the keyboard can be accomplished by reversing the process.

  1. aVcGUUPpVqSdfBKF

    • Remove the phone's back cover by placing your thumb the above charging port, located at the bottom of the phone, and sliding the back cover upward.

  2. nx1o3gVnnhOMBhBV
    nx1o3gVnnhOMBhBV
    ZBanwgMbitWmuwrM

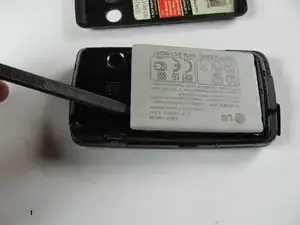

    • Gently pry the battery out of the phone with the spudger.

  3. m3Hnx2dCSWA1YyQV

    • Unscrew the 5 #1 5mm screws.

  4. XhnLfTsF2AkyYqVs

    • Lift the inner shell from the phone.

  5. 3rNLVybqkWH1AyCx

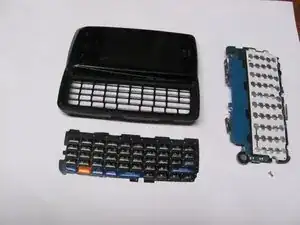

    • Remove the main circuit board.

    • Remove the keyboard membrane.

Abschluss

To reassemble your device, follow these instructions in reverse order.
