Before proceeding make sure the necessary tools described in previous guide are within reach.

  1. aVcGUUPpVqSdfBKF
    • Remove the phone's back cover by placing your thumb the above charging port, located at the bottom of the phone, and sliding the back cover upward.

  2. nx1o3gVnnhOMBhBV
    nx1o3gVnnhOMBhBV
    ZBanwgMbitWmuwrM
    • Gently pry the battery out of the phone with the spudger.

  3. m3Hnx2dCSWA1YyQV
    • Unscrew the 5 #1 5mm screws.

  4. XhnLfTsF2AkyYqVs
    • Lift the inner shell from the phone.

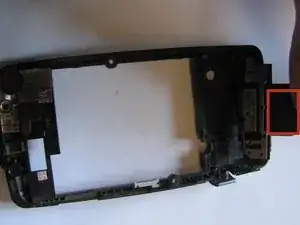

  5. GnMELhwSMWvXOvXn
    • Detach the speaker by pulling with enough force away from the phone. The speaker is weakly glued.

Abschluss

To reassemble your device, follow these instructions in reverse order.
