Einleitung

If your camera continues to malfunction, such as taking blurry pictures, or if the camera lens is broken. This guide should show you how to easily replace your LG Spectrum Camera.

  1. AG1BuvTkJ4asVeWG
    AG1BuvTkJ4asVeWG
    DsnduYd3bTOcfM6N
    • Using your thumbnail, lift up on the notch in the middle of the bottom side of the phone.

  2. EuZFZkWyen6PoWJl
    • Using either your thumbnail or a plastic opening tool, lift up on the battery using the notch in the bottom left hand corner of the battery and remove it from the phone.

  3. SEhYYD6iVWGFSGDA
    SEhYYD6iVWGFSGDA
    BAODIHF2ulQtGbfS

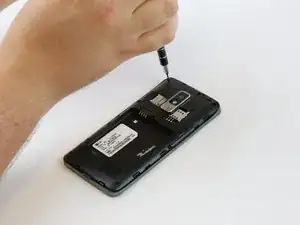

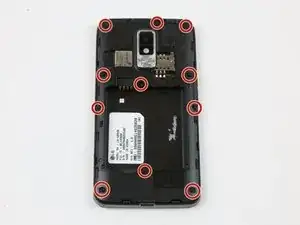

    • Remove eleven 4mm Phillips #000 screws with a PH000 screwdriver.

    • Use the magnet board to keep the screws in one place.

  4. Q3ZLXVhyGwaZfZHA
    • Use the plastic opening tool to firmly pry up the plastic backing around the perimeter of the phone.

  5. gxbrkPLJ2U2Nmaan
    gxbrkPLJ2U2Nmaan
    XRMeNYP2yhLqxqKG

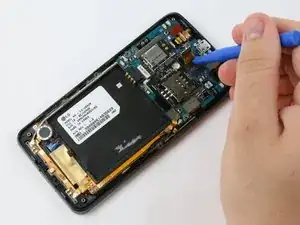

    • Remove the camera by gently lifting the film that is attached to it from motherboard with the plastic opening tool.

  6. sqoAFKDuPD2Zj63x
    • Use the plastic opening tool, or your hand, to pull up on the camera and remove it from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
