LG Spectrum Sim/SD Port Replacement

Geschrieben von: Aiman Sallam
  • Kommentare: 0
LG Spectrum Sim/SD Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

If the phone is having internet issues or memory problems, replacing the SIM/SD Port could resolve these problems.

  1. AG1BuvTkJ4asVeWG
    AG1BuvTkJ4asVeWG
    DsnduYd3bTOcfM6N

    • Using your thumbnail, lift up on the notch in the middle of the bottom side of the phone.

  2. EuZFZkWyen6PoWJl

    • Using either your thumbnail or a plastic opening tool, lift up on the battery using the notch in the bottom left hand corner of the battery and remove it from the phone.

  3. dNHqYO3EHwK3YNuZ
    dNHqYO3EHwK3YNuZ
    XgVGl4j2LrDHCJN1

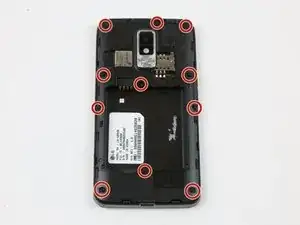

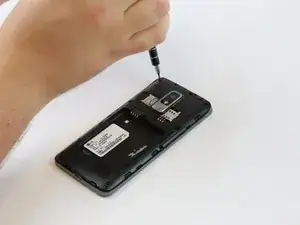

    • Remove eleven 4mm Phillips #000 screws with a PH000 screwdriver.

    • Use the magnetic mat to keep the screws in one place.

  4. QAHcTfmfKXklL5fo

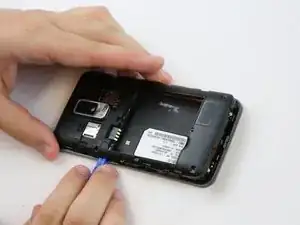

    • Use the plastic opening tool to firmly pry up the plastic backing around the perimeter of the phone.

  5. u5swLDb3skdaLGiD

    • Detach the black rectangular film attached to the SIM/SD card plate with a plastic opening tool.

  6. 2cIciiAWPWJ5OxUy

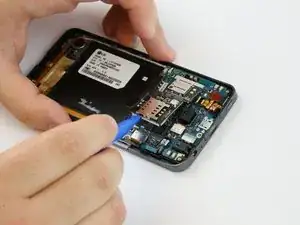

    • Hook the plastic opening tool underneath the plate and gently lift it up.

  7. aZto2kefEiTtXyE4

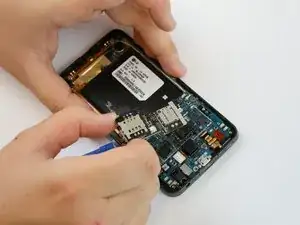

    • Gently wiggle the plate side-to-side while pulling up to release it from the metal clamps holding it in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
