Einleitung
If the display on the phone is cracked or is unresponsive to touch in areas or the whole phone you may need to replace the display. This will require you to take everything out of the phone as the display itself cannot be removed solely without possible damage to other parts of the phone.
-
-
First you need to remove the back case of the phone.
-
Place the phone face down.
-

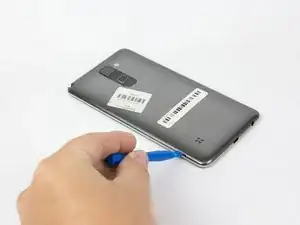

Using the plastic opening tool, insert into the initial gap shown.
-

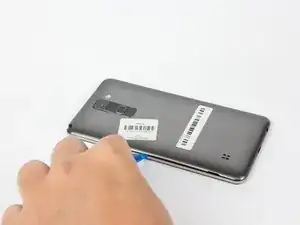

Slowly guide the tool around the case until the case comes off with ease.
-
-
-

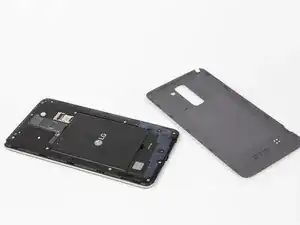

Place the back case to the side.
-

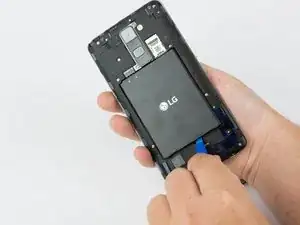

Use your finger or the opening tool to remove battery.
-
Remove the battery carefully to not damage the phone or the battery.
-
-
-

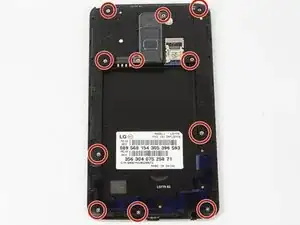

Remove the eleven 4mm Phillips #00 screws.
-
Place screws in safe location.
-

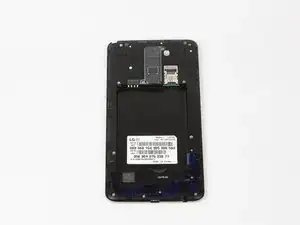

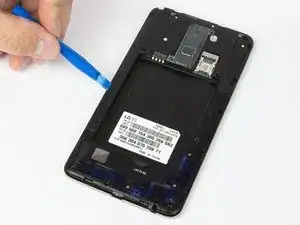

Use Plastic opener tool to remove inner case.
-

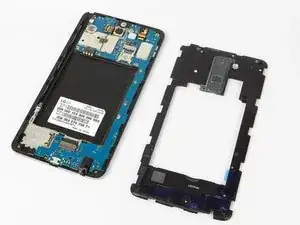

Gently remove inner case.
-
-
-

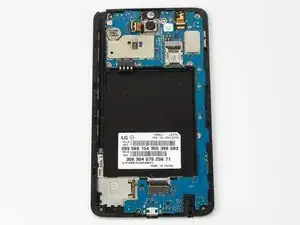

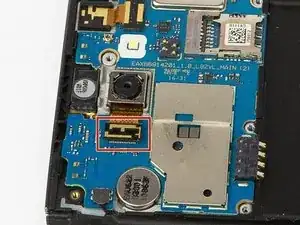

Use your finger or the opener to flip the flex cable shown in red box.
-

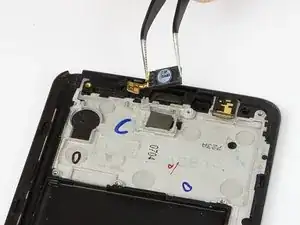

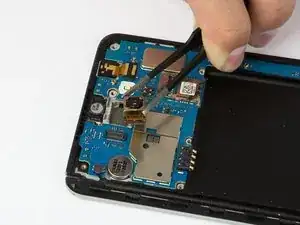

Use the precision tweezers to remove camera carefully.
-
-
-

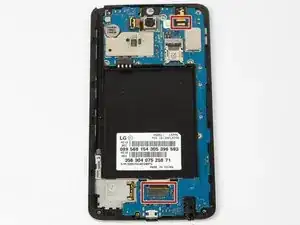

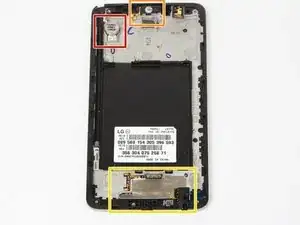

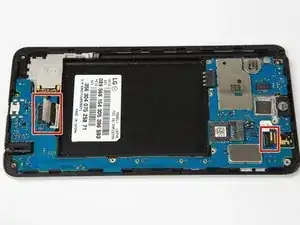

Gently flip the cables(shown in red boxes) using the opener tool.
-

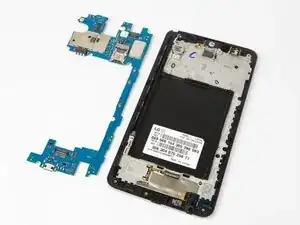

Gently remove the motherboard itself.
-
Place motherboard on a soft surface to not damage it.
-
-
-

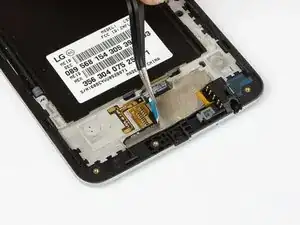

Use the tweezers to peel the film off carefully.
-

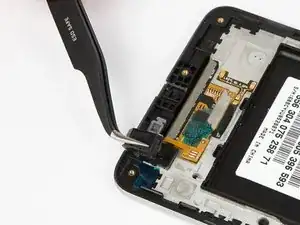

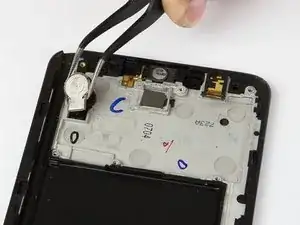

Use the tweezers to remove the headphone jack gently.
-

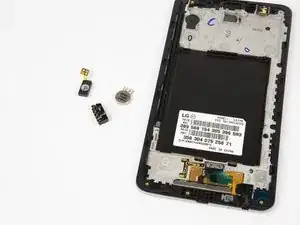

Place all three devices in a safe, known, location.
-
To reassemble your device, follow these instructions in reverse order.
