LG TP 1100 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

The keypad for the phone

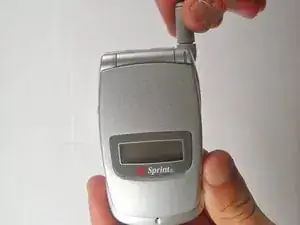

  1. lfoK24emRNPu4woR

    • Unscrew Antenna

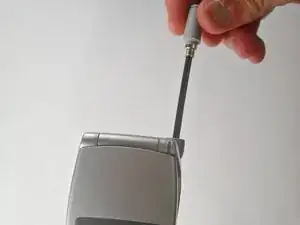

  2. jarXBfUgNg6p1HNT

    • Pull Antenna from socket

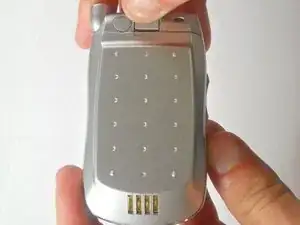

  3. lEcINxcYuWuwDRRl

    • Turn Phone over

  4. jK2a1FjqZw3WNJTJ

    • Pull up tab on top

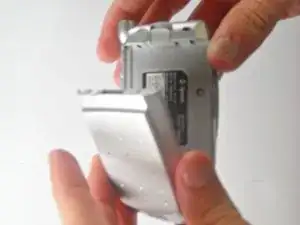

  5. fZJP1GvucUsCx1VO

    • Remove the battery

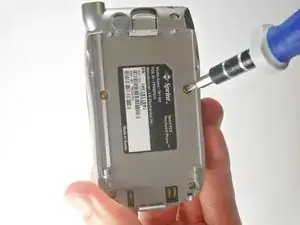

  6. DGNm2LHyyaAaYZ5O

    • Unscrew the four screws behind the battery

  7. 5orYBL1bvAu3bmk3
    5orYBL1bvAu3bmk3

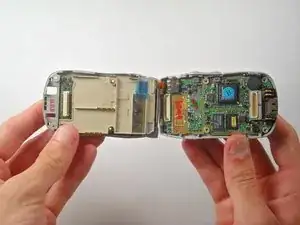

    JVGG2pKDHfBDrKYY

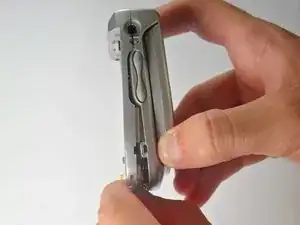

    • Pull off back cover

    • Do not separate the covers

    • Do not rip the tape connecting the two covers

  8. ry2dUwaVEL6uxw6f

    • Remove back cover

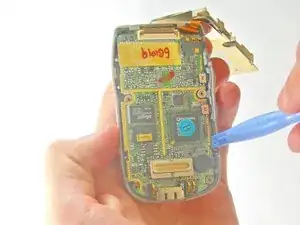

  9. ssp2Pqx6pVcWxKqy
    ssp2Pqx6pVcWxKqy
    UVRMNA1sSijVIR2Y

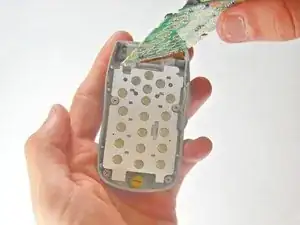

    • Pry the circuit board from front cover

    • Do not let number pad fall out

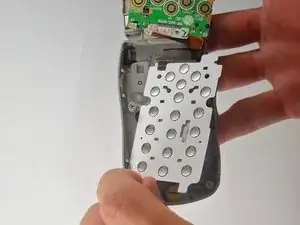

  10. XnCXskEEWWKlHcer

    • Now remove the number pad

  11. 3fMBHNWkmrHiofqE

    • Remove the navigation keys

Abschluss

To reassemble your device, follow these instructions in reverse order.
