For all electronics the motherboard is the is central component required for operation. Owners of the LG Thrill 4G can use this guide to replace their devices motherboard, giving back life to their device.
-
-
Remove the three Philips #00 screws from the bottom of the phone.
-
Two 5.5 mm screws
-
One 4 mm screw
-
-
-
Use your finger or opening tool to wedge the speaker out starting at the small notch at the bottom of the phone.
-
-
-
Place the plastic opening tool under the bezel at either bottom corner of the HDMI cover.
-
USB Cover
-
HDMI Cover
-
-
-
Utilize a spudger or plastic opening tool and gently disconnect the ribbon cable that is attached to the black micro-SIM card board.
-
-
-
Carefully pry the board up to detach it from its place in the phone.
-
Make sure to pry off the small tab connected to the camera unit as well.
-
-
-

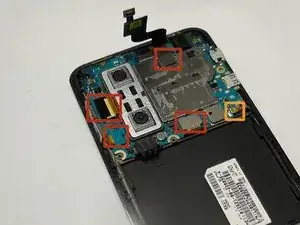

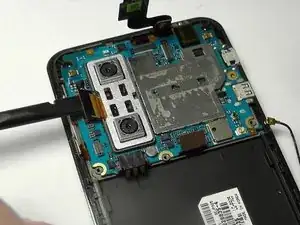

Use a plastic opening tool or spudger to gently disconnect the ribbon cables connected to the motherboard.
-
Disconnect the antenna cable from the bottom right corner of the motherboard.
-
-
-

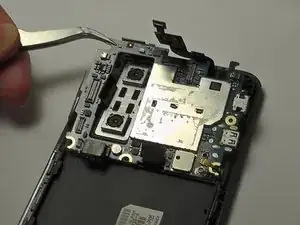

Use a spudger or pair of tweezers to grab the top left corner of the motherboard and gently lift it out, taking care to not damage any of the ribbon cables when removing.
-

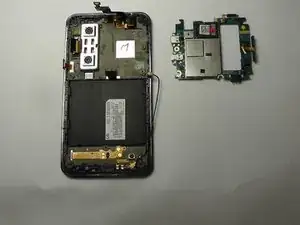

To reassemble your device, follow these instructions in reverse order.
