LG Thrill 4G Phone Buttons Replacement

Geschrieben von: Kenny Richmond

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

Many people enjoy their phones by texting, calling, browsing, gaming, etc. After a while you may notice that your button pad is not registering as well or in some cases at all. Instead of spending the money to purchase a new phone in its entirety, this easy to follow guide will take you step by step in replacing your LG Thrill 4G phone buttons. Only two tools will be needed for this replacement which are an iFixit opening tool, as well as a Phillips #00 screwdriver. Save money now and use this guide to get your phone buttons back in working condition!

Werkzeuge

Schritt 1

Pry open the back cover by using a fingernail or a plastic opening tool.
There is a small notch at the bottom of the cover for easy removal.

Schritt 2

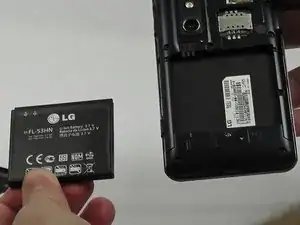

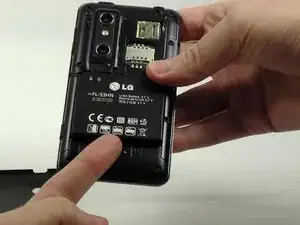

Remove the battery from the phone.
There is a small ledge located at the bottom of the battery for easy removal.

Schritt 3

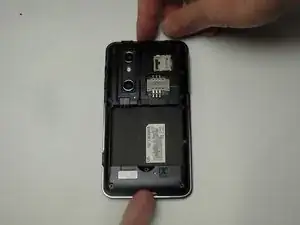

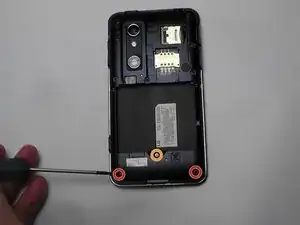

Remove the three Philips #00 screws from the bottom of the phone.
Two 5.5 mm screws
One 4 mm screw

Schritt 4

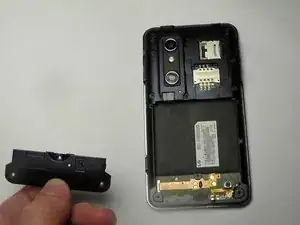

Use your finger or opening tool to wedge the speaker out starting at the small notch at the bottom of the phone.

Schritt 5

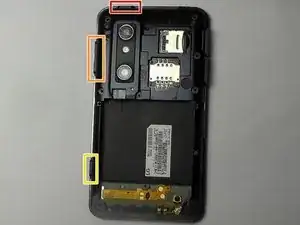

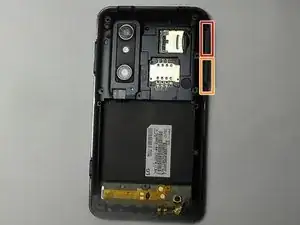

Remove the three buttons from the side and the top of the phone.
Power button
Volume button
3D camera button

Schritt 6

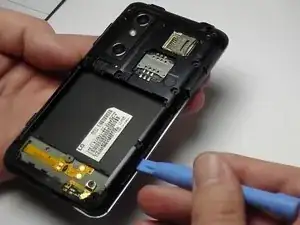

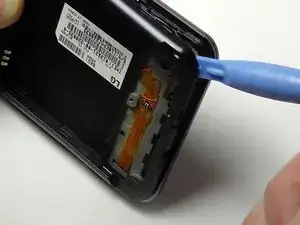

Place the plastic opening tool under the bezel at either bottom corner of the HDMI cover.
This loosens both the HDMI and USB covers for easy removal.
USB Cover
HDMI Cover
