LG Thrill 4G SIM/Micro SD Card Replacement

Geschrieben von: Khbero Baker
  • Kommentare: 0
LG Thrill 4G SIM/Micro SD Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

Before we begin disassembling your LG device, make sure your phone is turned off, make sure you have .the back cover and the battery detached to properly access the sim card board.

  1. sbp4Zqxt4nSrUq5d
    sbp4Zqxt4nSrUq5d
    6OeRLMU3U3wGZO6b

    • Pry open the back cover by using a fingernail or a plastic opening tool.

    • There is a small notch at the bottom of the cover for easy removal.

  2. BAAPfV1dWTQGVccf
    BAAPfV1dWTQGVccf
    I1KoJKVPluW5TTAl

    • Remove the battery from the phone.

    • There is a small ledge located at the bottom of the battery for easy removal.

  3. lNAoiH3qtZtF4ekx

    • Remove the three Philips #00 screws from the bottom of the phone.

    • Two 5.5 mm screws

    • One 4 mm screw

  4. Pb5UkHdPuFnndphP
    Pb5UkHdPuFnndphP
    a3CiteZhQghXagoi

    • Use your finger or opening tool to wedge the speaker out starting at the small notch at the bottom of the phone.

  5. 5IQyiaDUoWIWJ5uk

    • Remove the three buttons from the side and the top of the phone.

    • Power button

    • Volume button

    • 3D camera button

  6. ZSXk4lckG1gS2rDe
    ZSXk4lckG1gS2rDe
    wHSKsUBmbgUIAocO
    yY5ICxYcRXCbvt43

    • Place the plastic opening tool under the bezel at either bottom corner of the HDMI cover.

    • This loosens both the HDMI and USB covers for easy removal.

    • USB Cover

    • HDMI Cover

  7. XWWHDLhdLYnVS4DG

    • Remove the six Phillips #00 screws within the mid-cover bezel.

  8. AUaChvWXVPtk4ygl
    AUaChvWXVPtk4ygl
    KvWQZWPRAA52SE6u
    W5O1rIVZIMklikDO

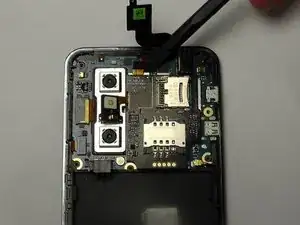

    • Utilize a spudger or plastic opening tool and gently disconnect the ribbon cable that is attached to the black micro-SIM card board.

  9. KvRZVxhSCRpVSO1M
    KvRZVxhSCRpVSO1M
    eSFfPqfuDethcwuQ
    MBrBEXGcCtASfAHK

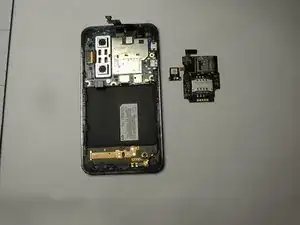

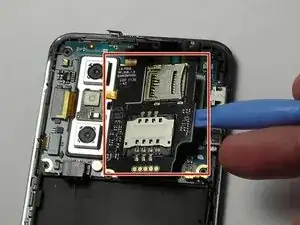

    • Carefully pry the board up to detach it from its place in the phone.

    • Make sure to pry off the small tab connected to the camera unit as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
