Einleitung

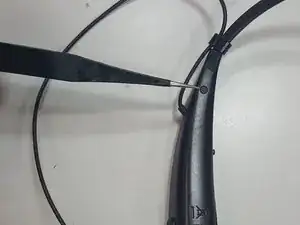

  1. 4dceaWna5NYGGSMY
    4dceaWna5NYGGSMY
    JOAuKnsUECJBsC6M
    CZSwhR4GXSXsHcAu
    • Locate the right and left side speaker where the hidden screw is located and remove the rubber piece covering the screw.

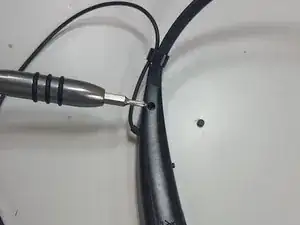

  2. 5mo6FYHLfJLgMjRZ
    5mo6FYHLfJLgMjRZ
    FqxuQEIcxhBLUBZC
    • Using a Philips #00 screwdriver, remove the hidden screws from both sides.

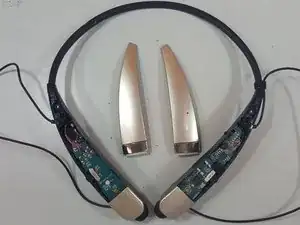

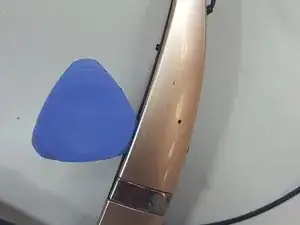

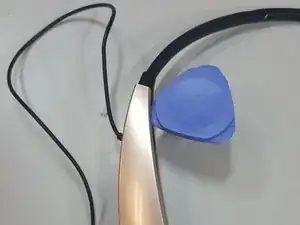

  3. xErEO3fHoVGrmHL1
    xErEO3fHoVGrmHL1
    Q2ZCIvxIUhgCNVtW
    W6rtirseTSVMwgOp
    • Use a guitar pick or any opening tool to pry open the housing for the side you want to replace the speaker.

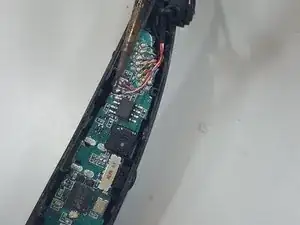

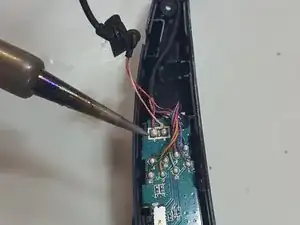

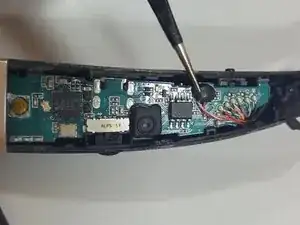

  4. FkInKCVdTsvbiGpU
    FkInKCVdTsvbiGpU
    ZmeLWYxRdEckQSYJ
    eyMBCSYSdFQcYQ1e
    • Right side can be de-soldered right away but the left side speaker solder connection to the board is covered by rubber material which needs to be removed first before it can be de-soldered.

    Play nahe ho rahaa he

    Suraj Kumar -

    Opannahe ho rahaahe

    Suraj Kumar -

    Bilutotha caneakt nahe ho rhahe

    Suraj Kumar -

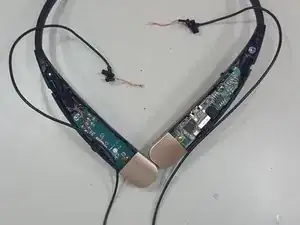

  5. krPxBPLS2roM1vkS
    • Once the speakers have been de-soldered, replace with new ones.

Abschluss

To reassemble your device, follow these instructions in reverse order.
