LG Tone Ultra HBS-810 Speaker (Right or Left) Replacement

Geschrieben von: Faizan Naveed
  • Kommentare: 9
LG Tone Ultra HBS-810 Speaker (Right or Left) Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

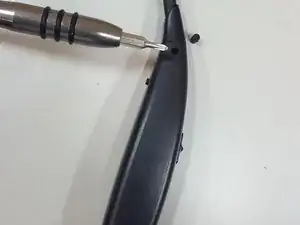

  1. 1LMxhO53y46dheyf
    1LMxhO53y46dheyf
    xMKKqSEnRYra1byu
    ZKBHqaVpyiDX1QPw

    • First, see which side speaker needs to be replaced.

    • Locate the hidden screw as shown in the picture and remove the rubber piece with tweezers.

    • Remove the screw using a Philips #00 screwdriver.

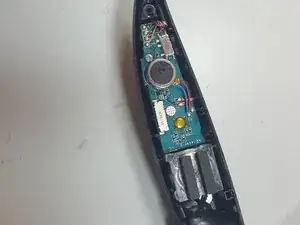

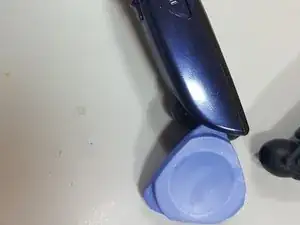

  2. D4BHIkoHP1TGKTFt
    D4BHIkoHP1TGKTFt
    6fZaYoy6fUoDxuM2
    oA2OoOOnAv1JNlAS

    • Using a guitar pick or any opening tool, open the frame of the headset.

  3. Z6kuPsFmSulEHmZW

    • Using a Philips #00 screwdriver remove the screw holding the motherboard in place.

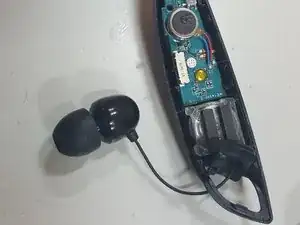

  4. SGZ12mUN36FgQZSZ
    SGZ12mUN36FgQZSZ
    DYXTsk3YAuMrO5kv
    2to16NYNhhGD1CNd

    • Slightly push back on the speaker back housing so the speaker can be pushed out as seen in the pictures.

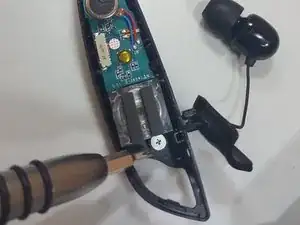

  5. tkVWyWHXDNWSYwNH
    tkVWyWHXDNWSYwNH
    erIYMF1pLxKxYFH3

    • Once the speaker is out of the way, the hidden screw can be removed using a Philips #00 screwdriver.

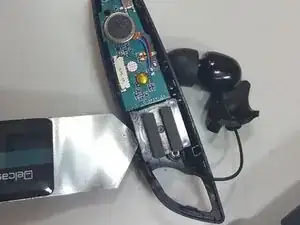

  6. rT5rfXFWjHZPwbCI
    rT5rfXFWjHZPwbCI
    5FFUNOPMEQeP6SwG
    Bt6PbXDBPMlv4LSW

    • Using a pry/opening tool, slightly lift the speaker and motherboard out of place.

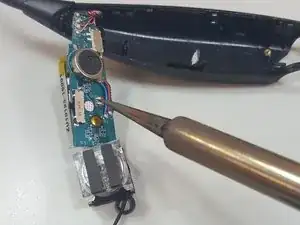

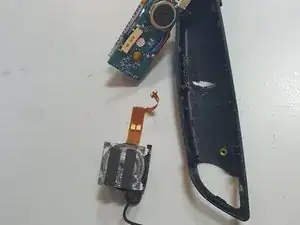

  7. NtMeEJNHDVhbvMJw
    NtMeEJNHDVhbvMJw
    LwDMSL34uj2lV1db

    • Use a soldering iron to desolder the speaker from the motherboard.

    How can I get replacement speakers for that model?

    Lorenzo Duffus -

Abschluss

To reassemble your device, follow these instructions in reverse order.
