LG Treasure Display Replacement

Geschrieben von: david amirahmadi

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

This guide will remove the digitizer and mother board from the display screen, allowing it to be replaced.

Werkzeuge

Phillips #000 Screwdriver

Schritt 1

Make sure the LG Treasure is turned off.

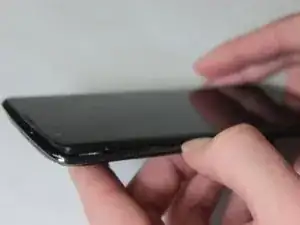

Pull off the back cover from the phone using the groove on the bottom right side.

Schritt 2

Remove the battery from the phone by lifting up on the bottom end of the battery.

Schritt 3

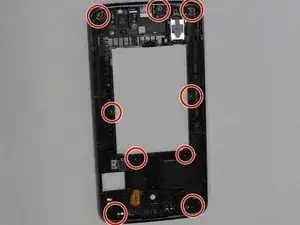

Remove all 9 of the 3mm Phillips #000 screws from the digitizer.
Work your way around the edge of the phone, gently prying the digitizer off the phone.

Schritt 4

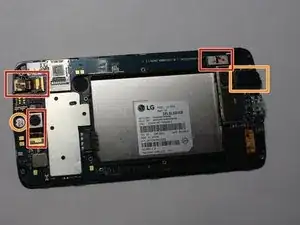

Remove the Front Facing Camera, Rear Facing Camera, and the Display Connector by lifting the gold film-like connectors out of their connections.
Remove the ear speaker and audio jack by lifting them out of place using the tweezers.

Schritt 5

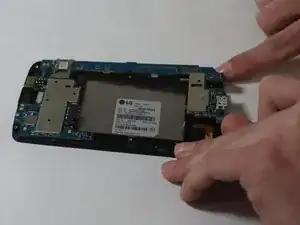

Remove the motherboard from the display screen by lifting it out of place.
