LG Treasure Loudspeaker Replacement

Geschrieben von: david amirahmadi
  • Kommentare: 0
LG Treasure Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will replace the loudspeaker which is located on the back of the phone digitizer.

  1. AoD1IUHCIQdWVpHy
    AoD1IUHCIQdWVpHy
    Xh2fmjJUFxic1AFs

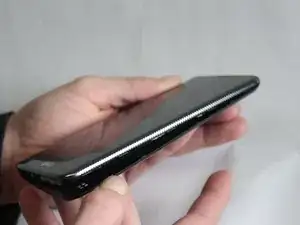

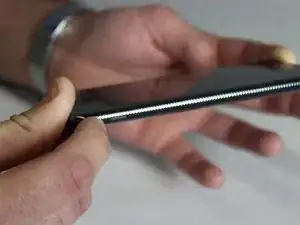

    • Make sure the LG Treasure is turned off.

    • Pull off the back cover from the phone using the groove on the bottom right side.

  2. KYaYwiaNR4JekJ2R

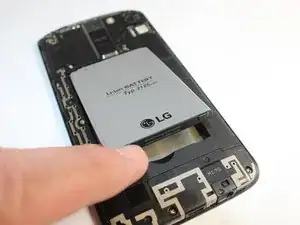

    • Remove the battery from the phone by lifting up on the bottom end of the battery.

  3. UMoXsoV4eE4hydy5
    UMoXsoV4eE4hydy5
    v4nvR3GsHSAN2G3y

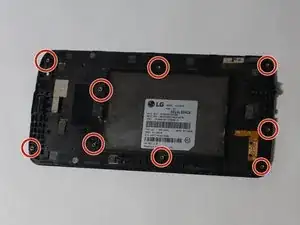

    • Remove all 9 of the 3mm Phillips #000 screws from the digitizer.

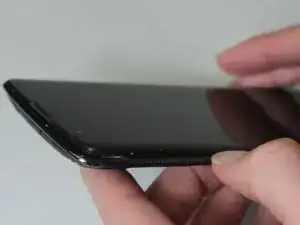

    • Remove the digitizer like you did the back cover by working your way around the edge peeling it up.

  4. jNmsdZ5tmcGgnS2O
    jNmsdZ5tmcGgnS2O
    PhILNKGPAQZB1VfK

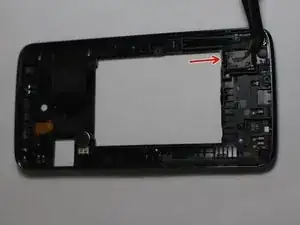

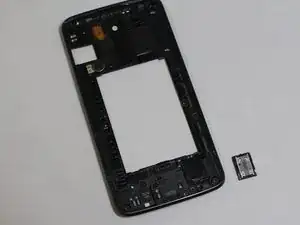

    • Use the tweezers to lift the loudspeaker out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
