LG Tribute 5 Headphone Jack Replacement

Geschrieben von: Kevin Hernon
  • Kommentare: 0
LG Tribute 5 Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will show you how to replace the headphone jack in your LG Tribute 5, model LS675. When you insert your headphones into your device and are unable to hear anything or you audio is distorted, replacing the headphone jack may fix this issue.

  1. X21gxlVLBH4YBfYD
    X21gxlVLBH4YBfYD
    UJeDrEodOfcmpBVb

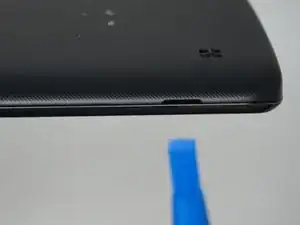

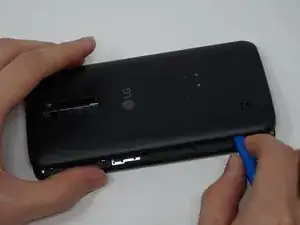

    • Using an iFixit opening tool, gently pull outward on the cutout on the bottom left corner of the phone to remove the back cover.

  2. Y6f1PnqcUbJNMIWq
    Y6f1PnqcUbJNMIWq
    y31cP5bu42J51HCP
    bcbLcEPwbPYsfsVV

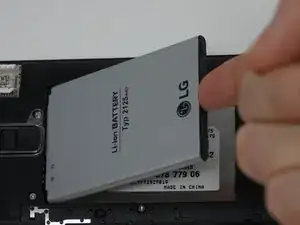

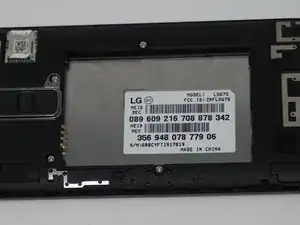

    • Gently lift the battery out from the compartment.

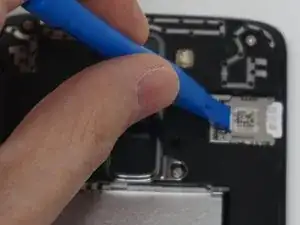

    • Use an iFixit opening tool to slide out the SD card and nano sim card from the device as shown.

  3. TgVC5pHN1LNLUcR5
    TgVC5pHN1LNLUcR5
    piSGyGKpHXocigRt
    qqMhB4SFL632wpZD

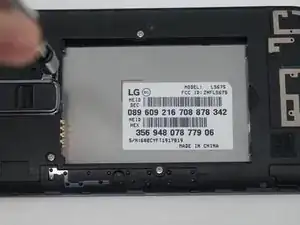

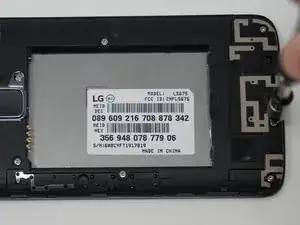

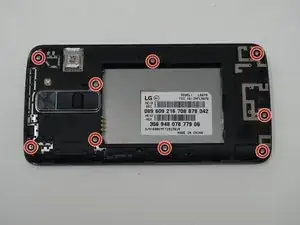

    • Remove the nine 2mm JIS #00 screws from the mid-frame.

  4. MHMusBRvoWQwfcCJ
    MHMusBRvoWQwfcCJ
    FFcNEVDHIqZITxBm
    SOG6QAkEv5UBOLG2

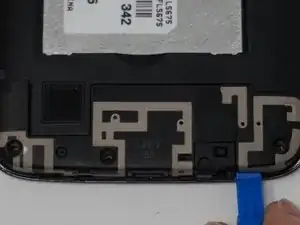

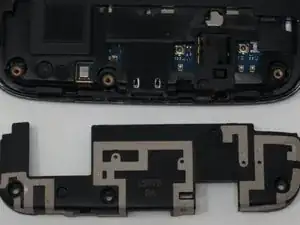

    • Using an iFixit opening tool, remove the antenna extender located at the bottom.

  5. vtjbtklmiNyGpIwS
    vtjbtklmiNyGpIwS
    ZJcBcTJyspIMtLbA

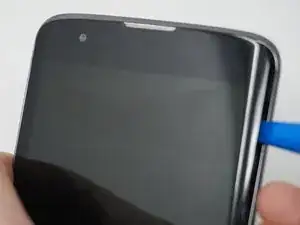

    • Gently remove the mid-frame using an iFixit opening tool as shown.

    • Avoid applying too much force when separating the mid frame. Too much force can bend or damage the device.

  6. 261IQ6H62ZyMHwBN

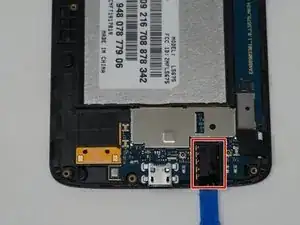

    • Use an iFixit opening tool to remove the headphone jack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
