LG Tribute 5 Motherboard Replacement

Geschrieben von: Renee Dawn Nelson

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will teach you how to replace the motherboard in your LG Tribute 5, model LS675. The motherboard is a circuit board that controls all of the phone's components. If your phone is experiencing issues after replacing the battery, you may consider replacing the motherboard.

Werkzeuge

Schritt 1

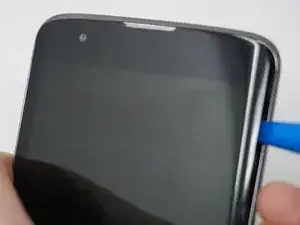

Using an iFixit opening tool, gently pull outward on the cutout on the bottom left corner of the phone to remove the back cover.

Schritt 2

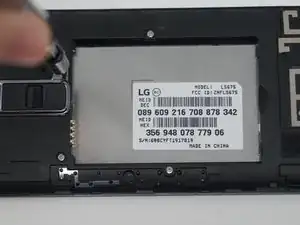

Gently lift the battery out from the compartment.
Use an iFixit opening tool to slide out the SD card and nano sim card from the device as shown.

Schritt 3

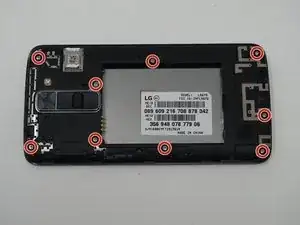

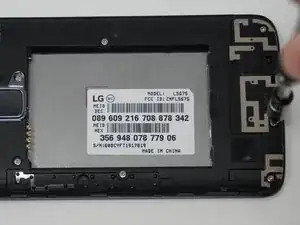

Remove the nine 2mm JIS #00 screws from the mid-frame.

Schritt 4

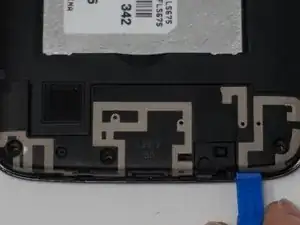

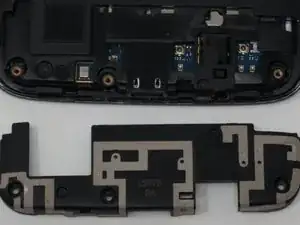

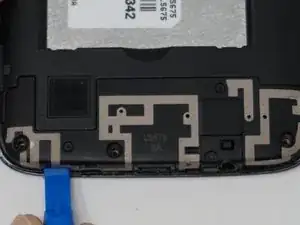

Using an iFixit opening tool, remove the antenna extender located at the bottom.

Schritt 5

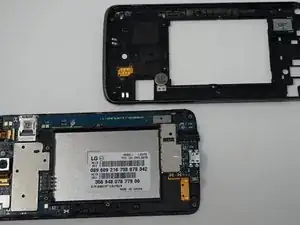

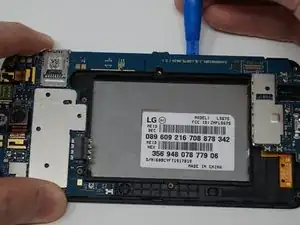

Gently remove the mid-frame using an iFixit opening tool as shown.
Avoid applying too much force when separating the mid frame. Too much force can bend or damage the device.

Schritt 6

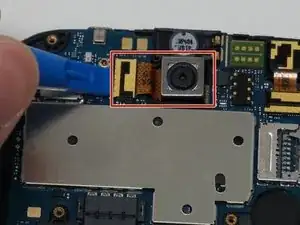

Using an iFixit opening tool, gently disconnect the rear camera from the top center of the motherboard.
Remove the front facing camera from the top right corner of the motherboard.
